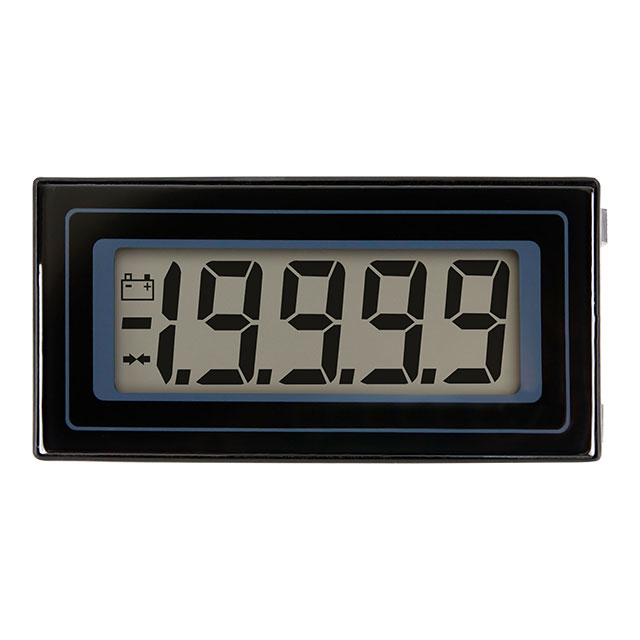

DPM 160S

Active

Lascar Electronics

PROCESS METER LCD PNL MOUNT

Search across all available documentation for this part.

Active

Lascar Electronics

PROCESS METER LCD PNL MOUNT

Technical Specifications

Parameters and characteristics for this part

PROCESS METER LCD PNL MOUNT

Part	Measuring Type	Measuring Range [Min]	Measuring Range [Max]	Type	Number of Characters Per Row	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Output Type	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Display Characters - Height [z]	Display Characters - Height [z]	Display Type
Lascar Electronics DPM 160S	Voltage	-200 mV	0.2 VDC	Voltmeter	4.5	27 mm	57 mm	Reference	PC Pin	14 V	6 V	0.5 in	12.7 mm	LCD - Black Characters

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 157.49

General part information

Voltmeter LCD - Black Characters Display Panel Mount

Technical documentation and resources
