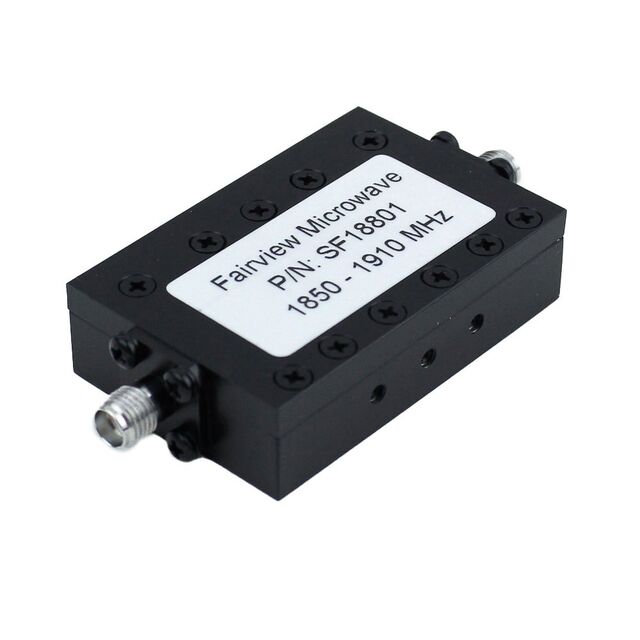

SF18801
ObsoleteFairview Microwave
BANDPASS FILTER 1.85-1.91GHZ SMA
SF18801
ObsoleteFairview Microwave
BANDPASS FILTER 1.85-1.91GHZ SMA
Description
General part information
SF18801
1.88GHz Center Frequency Band Pass RF Filter (Radio Frequency) 60MHz Bandwidth 1.5dB Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | SF18801 |
|---|---|
| Bandwidth | 60 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 1.88 GHz |
| Height (Max) | 0.63 in |
| Insertion Loss | 1.5 dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Length | 2 in |
| Size / Dimension Width | 1.319 in |
