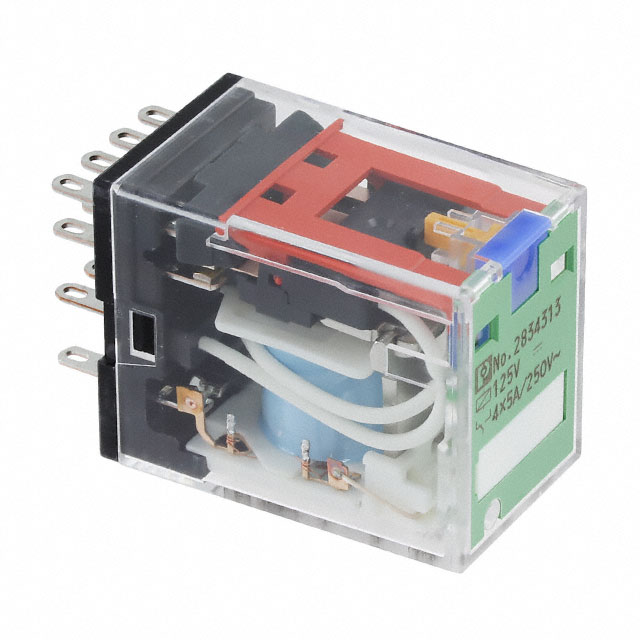

2834313
ActivePhoenix Contact
RELAY GEN PURPOSE 4PDT 5A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2834313
ActivePhoenix Contact
RELAY GEN PURPOSE 4PDT 5A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2834313 | 28343 Series |
|---|---|---|
| Approval Agency | VDE, UL, EAC, cULus | VDE, UL, EAC, cULus |
| Coil Current | 7.2 mA | 5.5 - 26 mA |
| Coil Resistance | 17.38 kOhms | 17.1 - 1263 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 125 VDC | 24 - 230 VAC |
| Contact Form | 4PDT (4 Form C) | SPDT (1 Form C), 4PDT (4 Form C) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 5 A | 5 - 12 A |
| Features | Lighted Indicator, Diode, Test Button | Lighted Indicator, Varistor, Socket Included, Diode, Test Button |
| Mounting Type | Socketable | DIN Rail, Socketable |
| Operate Time | 13 ms | 8 - 13 ms |
| Operating Temperature [Max] | 70 °C | 60 - 70 °C |
| Operating Temperature [Min] | -55 °C | -55 - -25 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 5 ms | 5 - 22 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Plug In | Screw Terminal, Plug In |
28343 Series
RELAY GEN PURPOSE SPDT 12A 24V
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Switching Voltage | Features | Coil Resistance | Coil Voltage | Contact Rating (Current) | Release Time | Mounting Type | Relay Type | Coil Type | Coil Current | Contact Material | Contact Form | Operate Time | Termination Style | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2834339 | -25 °C | 60 °C | 250 VAC, 250 VDC | Lighted Indicator, Socket Included, Varistor | 923 Ohms | 24 VAC | 12 A | 14 ms | DIN Rail | General Purpose | Non Latching | 26 mA | Silver Nickel (AgNi) | SPDT (1 Form C) | 12 ms | Screw Terminal | |
Phoenix Contact 2834313 | -55 °C | 70 °C | 250 VAC, 250 VDC | Diode, Lighted Indicator, Test Button | 17.38 kOhms | 125 VDC | 5 A | 5 ms | Socketable | General Purpose | Non Latching | 7.2 mA | Gold (Au), Silver Nickel (AgNi) | 4PDT (4 Form C) | 13 ms | Plug In | cULus, EAC, UL, VDE |
Phoenix Contact 2834355 | -25 °C | 60 °C | 250 VAC, 250 VDC | Lighted Indicator, Varistor | 41.82 kOhms | 230 VAC | 12 A | 22 ms | DIN Rail | General Purpose | Non Latching | 5.5 mA | Silver Nickel (AgNi) | SPDT (1 Form C) | 12 ms | Screw Terminal | |
Phoenix Contact 2834342 | -25 °C | 60 °C | 250 VAC, 250 VDC | Lighted Indicator, Socket Included, Varistor | 17.1 kOhms | 120 VAC | 12 A | 16 ms | DIN Rail | General Purpose | Non Latching | 7 mA | Silver Nickel (AgNi) | SPDT (1 Form C) | 12 ms | Screw Terminal | |
Phoenix Contact 2834326 | -25 °C | 60 °C | 250 VAC, 250 VDC | Diode, Lighted Indicator, Socket Included | 1263 Ohms | 24 VDC | 12 A | 10 ms | DIN Rail | General Purpose | Non Latching | 19 mA | Silver Nickel (AgNi) | SPDT (1 Form C) | 8 ms | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
28343 Series
General Purpose Relay 4PDT (4 Form C) 125VDC Coil Socketable
