MAX1061AEEI+
ActiveAnalog Devices Inc./Maxim Integrated

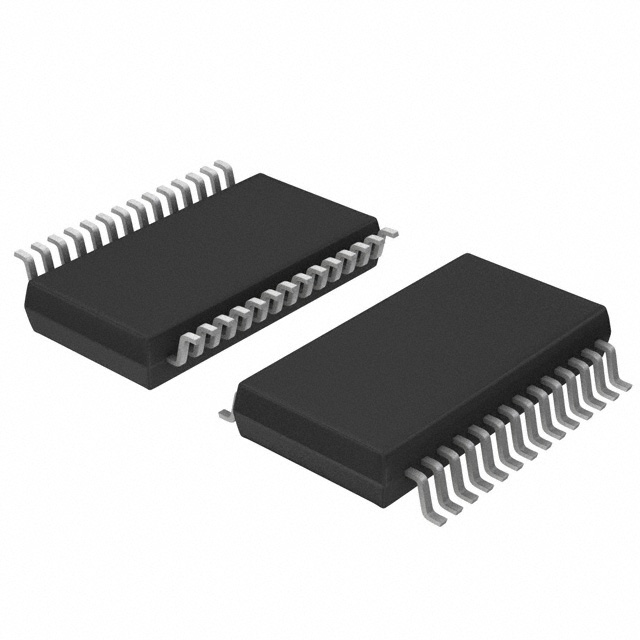

IC ADC 10BIT SAR 28QSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX1061AEEI+
ActiveAnalog Devices Inc./Maxim Integrated
IC ADC 10BIT SAR 28QSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX1061AEEI+ | MAX1061 Series |
|---|---|---|
| - | - | |
| Architecture | SAR | SAR |
| Configuration | MUX-S/H-ADC | MUX-S/H-ADC |
| Data Interface | Parallel | Parallel |
| Input Type | Single Ended, Pseudo-Differential | Single Ended, Pseudo-Differential |
| Mounting Type | Surface Mount | Surface Mount |
| Number of A/D Converters | 1 | 1 |
| Number of Bits [custom] | 10 | 10 |
| Number of Inputs | 8, 4 | 4 - 8 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 28-SSOP | 28-SSOP |
| Ratio - S/H:ADC | 1:1 | 1:1 |
| Reference Type | External, Internal | External, Internal |
| Sampling Rate (Per Second) | 250 k | 250 k |
| Voltage - Supply, Analog [Max] | 3.6 V | 3.6 V |
| Voltage - Supply, Analog [Min] | 2.7 V | 2.7 V |
| Voltage - Supply, Digital [Max] | 3.6 V | 3.6 V |
| Voltage - Supply, Digital [Min] | 1.8 V | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 50 | $ 18.01 | |
MAX1061 Series
IC ADC 10-BIT 250KSPS 28-QSOP
| Part | Sampling Rate (Per Second) | Package / Case | Data Interface | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Architecture | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Configuration | Input Type | Reference Type | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Number of A/D Converters | Ratio - S/H:ADC | Number of Bits [custom] | Number of Inputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX1061BCEI+ | ||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAX1061AEEI+ | 250 k | 28-SSOP | Parallel | Surface Mount | 85 °C | -40 °C | SAR | 2.7 V | 3.6 V | MUX-S/H-ADC | Pseudo-Differential, Single Ended | External, Internal | 3.6 V | 1.8 V | 1 | 1:1 | 10 | 4, 8 |
Analog Devices Inc./Maxim Integrated MAX1061BEEI+ |
Description
General part information
MAX1061 Series
10 Bit Analog to Digital Converter 4, 8 Input 1 SAR 28-QSOP
