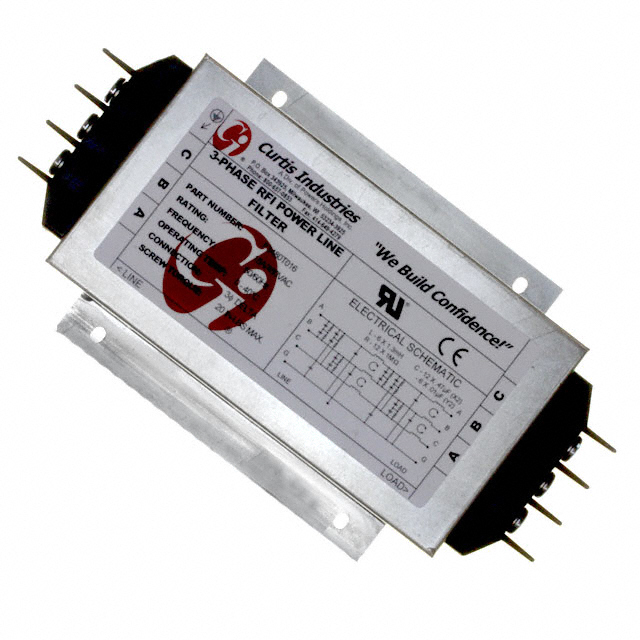

F3480T016
ActiveCurtis Industries
LINE FILTER 480VAC 16A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
F3480T016
ActiveCurtis Industries
LINE FILTER 480VAC 16A CHASSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | F3480T016 | F3480T Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Approval Agency | CE, UR | CE, UR |
| Configuration | Two Stage | Two Stage |
| Current | 16 A | 9 - 160 A |
| Filter Type | Three Phase (Delta) | Three Phase (Delta) |
| Frequency - Operating [Max] | 60 Hz | 60 Hz |
| Frequency - Operating [Min] | 50 Hz | 50 Hz |
| Mounting Type | Chassis Mount | Chassis Mount |
| Termination Style | Terminal Block | Terminal Block |
| Voltage - Rated AC | 480 V | 480 V |
F3480T Series
LINE FILTER 480VAC 160A CHASSIS
| Part | Mounting Type | Termination Style | Configuration | Approval Agency | Current | Voltage - Rated AC | Frequency - Operating [Max] | Frequency - Operating [Min] | Filter Type | Applications |
|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries F3480T160 | Chassis Mount | Terminal Block | Two Stage | CE, UR | 160 A | 480 V | 60 Hz | 50 Hz | Three Phase (Delta) | General Purpose |
Curtis Industries F3480T080 | Chassis Mount | Terminal Block | Two Stage | CE, UR | 80 A | 480 V | 60 Hz | 50 Hz | Three Phase (Delta) | General Purpose |
Curtis Industries F3480T016 | Chassis Mount | Terminal Block | Two Stage | CE, UR | 16 A | 480 V | 60 Hz | 50 Hz | Three Phase (Delta) | General Purpose |
Curtis Industries F3480T009 | Chassis Mount | Terminal Block | Two Stage | CE, UR | 9 A | 480 V | 60 Hz | 50 Hz | Three Phase (Delta) | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 10 | $ 226.13 | |
Description
General part information
F3480T Series
Three Phase (Delta) EMC/EMI Line Filter 16 A 480V 50/60Hz Two Stage Terminal Block
