1274684-1

Active

TE Connectivity AMP Connectors

CONN MINI BNC JACK R/A 75OHM PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN MINI BNC JACK R/A 75OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1274684-1

Body Finish	Nickel
Body Material	Zinc
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	Mini, BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	75 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	300 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN MINI BNC JACK R/A 75OHM PCB

Part	Dielectric Material	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Connector Style	Number of Ports	Impedance	Frequency - Max [Max]	Contact Termination	Shield Termination	Body Finish	Center Contact Material	Body Material	Center Contact Plating	Voltage Rating	Housing Color	Mounting Feature	Mating Cycles	Connector Type
TE Connectivity AMP Connectors 1274684-1	Polytetrafluoroethylene (PTFE)	Bayonet Lock	85 °C	-40 °C	Panel Mount, Right Angle, Through Hole	BNC, Mini	2	75 Ohms	2 GHz	Solder	Solder	Nickel	Phosphor Bronze	Zinc	Gold	300 VDC	Silver	Bulkhead - Front Side Nut	500	Female Socket, Jack

General part information

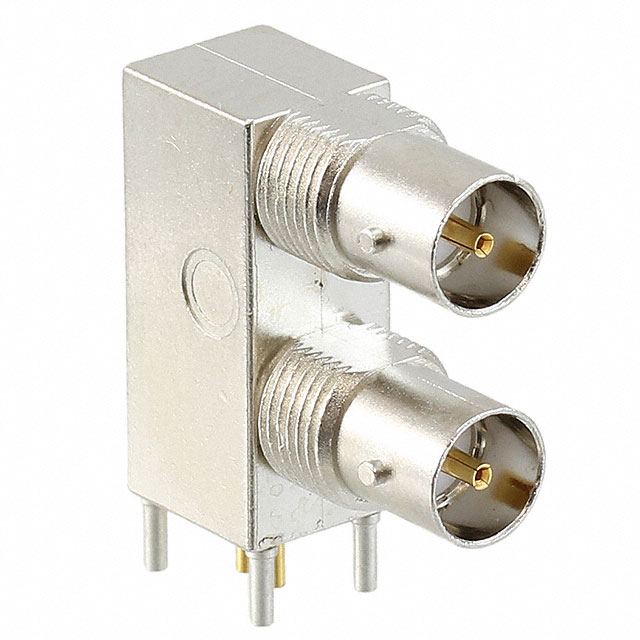

BNC, Mini Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
