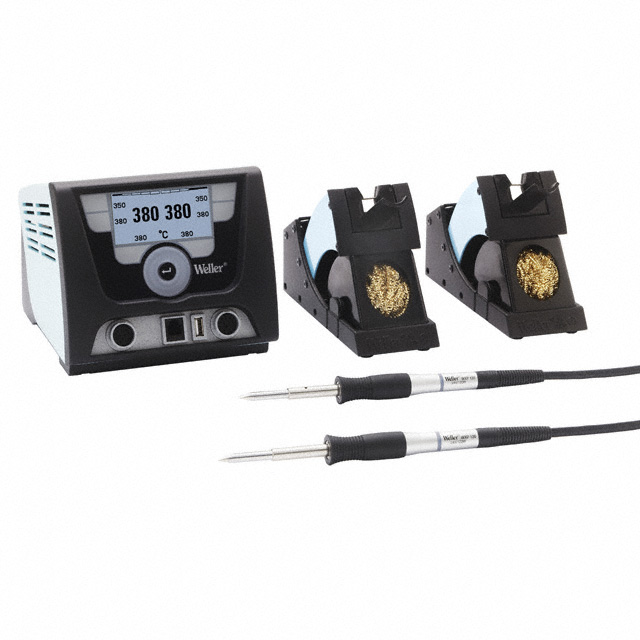

WX2020N

Active

Apex Tool Group

SOLDERING STATION 200W 2 CH 120V

Search across all available documentation for this part.

Active

Apex Tool Group

SOLDERING STATION 200W 2 CH 120V

Technical Specifications

Parameters and characteristics for this part

Specification	WX2020N

Base Unit	WX2
Control/Display Type	Digital
Features	USB Port, LCD Display, Auto Off, Touch Screen, ESD Safe
Includes	Iron Holder (2)
Number of Channels [custom]	2
Plug Type	NEMA 5-15
Supplied Iron, Tweezer, Handle	WXP120 (2)
Supplied Tips/Nozzles	XTB (2)
Temperature Range [Max]	450 °C
Temperature Range [Max]	850 °F
Temperature Range [Min]	100 °C
Temperature Range [Min]	200 °F
Tip Cleaner	Scouring Pad
Type	Soldering
Voltage - Input	120 V
Voltage - Output	24 V
Wattage	200 W
Workstand	WDH10

SOLDERING STATION 200W 2 CH 120V

Part	Tip Cleaner	Control/Display Type	Temperature Range [Min]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Max]	Voltage - Output	Type	Includes	Number of Channels [custom]	Plug Type	Wattage	Workstand	Features	Supplied Iron, Tweezer, Handle	Supplied Tips/Nozzles	Voltage - Input	Base Unit
Apex Tool Group WX2020N	Scouring Pad	Digital	100 °C	200 °F	450 °C	850 °F	24 V	Soldering	Iron Holder (2)	2	NEMA 5-15	200 W	WDH10	Auto Off, ESD Safe, LCD Display, Touch Screen, USB Port	WXP120 (2)	XTB (2)	120 V	WX2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1270.00

General part information

SOLDERING STATION 200W 2 CH 120V

Technical documentation and resources
