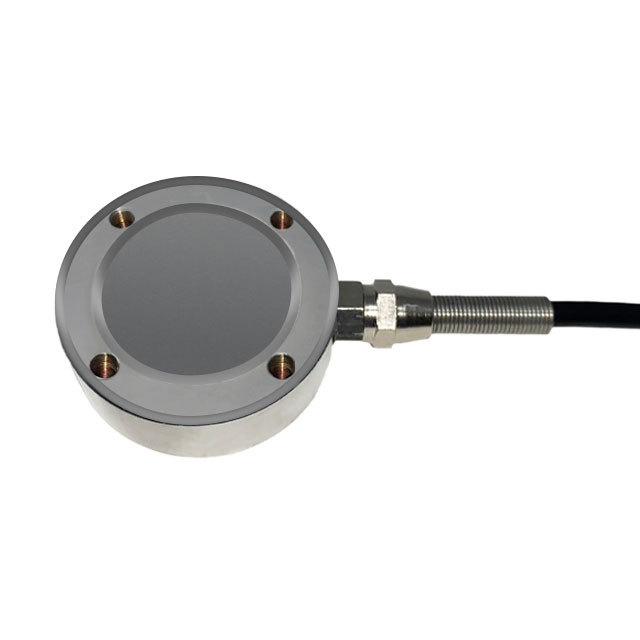

RSB2-01KM-S
ActiveLoadstar Sensors
1K KGF BUTTON LOAD CELL
RSB2-01KM-S
ActiveLoadstar Sensors
1K KGF BUTTON LOAD CELL
Description
General part information
RSB2-01KM-S
1K KGF BUTTON LOAD CELL
Technical Specifications
Parameters and characteristics for this part
| Specification | RSB2-01KM-S |
|---|---|
| Accuracy | 0.05 % |
| Actuator Size | 10 mm |
| Actuator Style | Round |
| Actuator Type | Pushbutton |
| Compensated Temperature (Max) | 40 °C |
| Compensated Temperature (Min) | -10 °C |
| Includes | Sensor |
| Operating Force | 1000 kgf |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Output | Analog Voltage mV/V (millivolts) |
| Sensor Type | Load Cell |
| Voltage - Supply (Maximum) | 10 V |
| Voltage - Supply (Minimum) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
