MS156-10C-NS
ActiveMasach Tech Ltd.

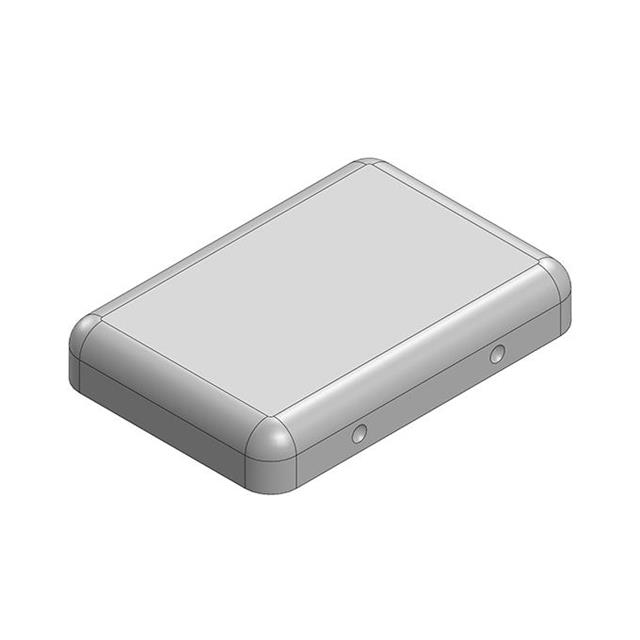

RF SHIELD 0.433X0.630" SNAP FIT
Deep-Dive with AI
Search across all available documentation for this part.
MS156-10C-NS
ActiveMasach Tech Ltd.
RF SHIELD 0.433X0.630" SNAP FIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS156-10C-NS |
|---|---|
| Height - Overall [z] | 2.6 mm |
| Height - Overall [z] | 0.102 in |
| Length - Overall [x] | 0.63 " |
| Length - Overall [x] | 16 mm |
| Mounting Type | Snap Fit |
| Type | Cover |
| Ventilation | Non-Vented |
| Width - Overall [x] | 11 mm |
| Width - Overall [x] | 0.433 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.26 | |
| 10 | $ 1.45 | |||
| 25 | $ 1.23 | |||
| 144 | $ 0.94 | |||
| 288 | $ 0.86 | |||
| 576 | $ 0.79 | |||
| 1008 | $ 0.75 | |||
| 2448 | $ 0.68 | |||
| 5040 | $ 0.64 | |||
Description
General part information
MS156 Series
RF Shield Cover 0.433" (11.00mm) X 0.630" (16.00mm) Non-Vented Snap Fit
Documents
Technical documentation and resources
