A5645H-EVB-1

Active

Antenova

A5645H MICA EVALUATION BOARD

Search across all available documentation for this part.

Active

Antenova

A5645H MICA EVALUATION BOARD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A5645H-EVB-1	A5645 Series

Antenna Type	-	Chip
Applications	-	Bluetooth, 802.11a/b/g/n, Zigbee™, Wi-Fi
For Use With/Related Products	A5645H	A5645H
Frequency [Max]	2.5 GHz	2.5 GHz
Frequency [Min]	2.4 GHz	2.4 GHz
Frequency Range	-	2.5 GHz
Frequency Range	-	2.4 GHz
Height (Max)	-	0.13 in
Height (Max)	-	3.3 mm
Mounting Type	-	Surface Mount
Number of Bands	-	1
RF Family/Standard	-	WiFi, Bluetooth, 802.15.4
Supplied Contents	Board(s)	Board(s)
Termination	-	Solder
Type	Antenna	Antenna
VSWR	-	1.8

A5645H MICA 2.4 GHZ SMD HALOGEN

Part	Antenna Type	Applications	VSWR	Height (Max) [Max] [z]	Height (Max)	Number of Bands	Mounting Type	Termination	RF Family/Standard	Frequency Range [Max]	Frequency Range [Min]	Supplied Contents	For Use With/Related Products	Frequency [Max]	Frequency [Min]	Type
Antenova A5645H	Chip	802.11a/b/g/n, Bluetooth, Wi-Fi, Zigbee™	1.8	0.13 in	3.3 mm	1	Surface Mount	Solder	802.15.4, Bluetooth, WiFi	2.5 GHz	2.4 GHz
Antenova A5645H-EVB-1												Board(s)	A5645H	2.5 GHz	2.4 GHz	Antenna

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 62.50

General part information

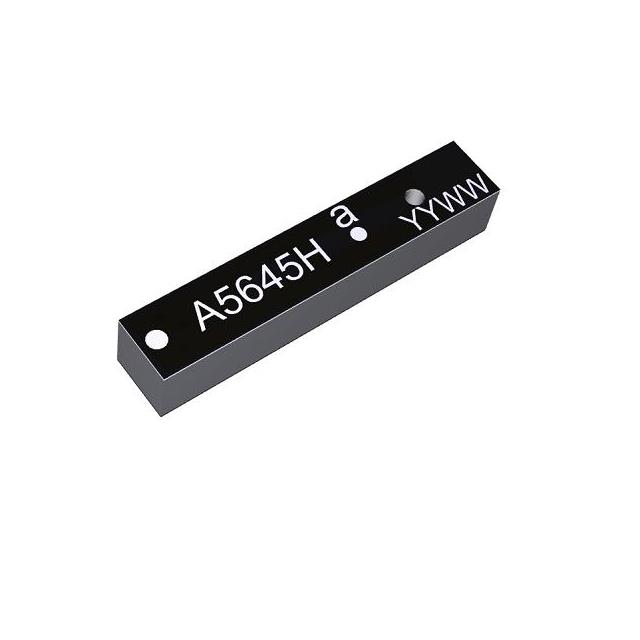

Mica A5645H Antenna 2.4GHz ~ 2.5GHz Evaluation Board
