AC320004-7
ActiveADD-ON BOARD, KSZ8863 ETHERNET PHY BOARD FOR MICROCHIP STARTER KITS
AC320004-7
ActiveADD-ON BOARD, KSZ8863 ETHERNET PHY BOARD FOR MICROCHIP STARTER KITS
Description
General part information
AC320004-7

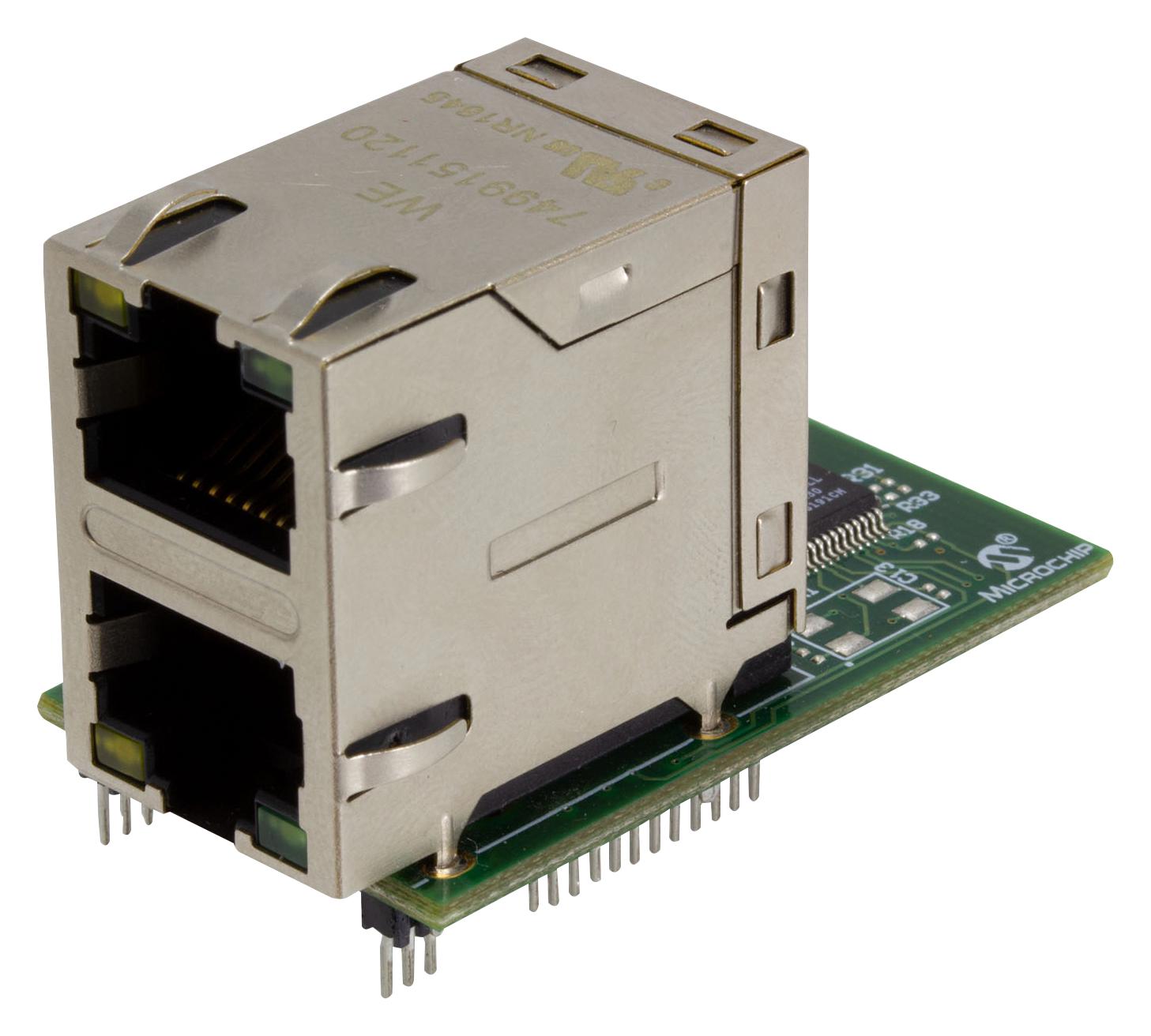

KSZ8863 daughter board (AC320004-7) enables Ethernet communication with a variety of Microchip starter kits. This information sheet provides an overview and a detailed schematic of the KSZ8863 Daughter Board. This daughter board is designed specifically to be used with the PIC32 Ethernet Starter Kit II (DM320004-2) or the PIC32MZ embedded connectivity with floating point unit (EF) starter kit (DM320007) however, it can also be used with other Microchip development hardware.
Technical Specifications
Parameters and characteristics for this part
| Specification | AC320004-7 |
|---|---|
| Contents | Board |
| Function | Ethernet PHY |
| Type | Interface |
| Utilized IC / Part | KSZ8863 |
