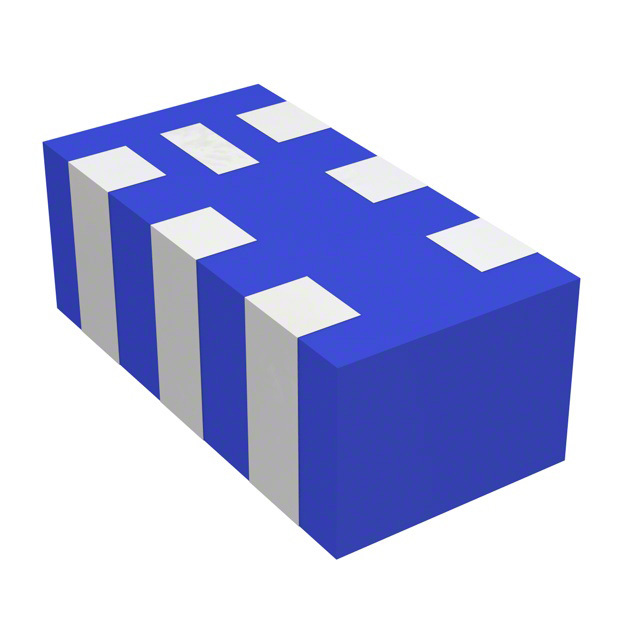

RFBLN1608050AM8T62

Active

Walsin Technology Corporation

BALUN 2.4GHZ-2.5GHZ 50/50 6SMD

Search across all available documentation for this part.

Active

Walsin Technology Corporation

BALUN 2.4GHZ-2.5GHZ 50/50 6SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.24
	Digi-Reel®	1	$ 0.24
	Tape & Reel (TR)	4000	$ 0.08

General part information

RF Balun 2.4GHz ~ 2.5GHz 50 / 50Ohm 6-SMD

Technical documentation and resources

Specification	RFBLN1608050AM8T62	RFBLN1608 Series

Frequency Range [Max]	2.5 GHz	2.5 GHz
Frequency Range [Min]	2.4 GHz	2.4 GHz
Impedance - Unbalanced/Balanced	-	50 Ohm
Impedance - Unbalanced/Balanced	-	-Ohm
Impedance - Unbalanced/Balanced [custom]	50 Ohm	50 Ohm
Impedance - Unbalanced/Balanced [custom]	50	50
Insertion Loss (Max) [Max]	1.2 dB	1 - 1.2 dB
Mounting Type	Surface Mount	Surface Mount
Package / Case	6-SMD	6-SMD, 0603
Package / Case	-	1608
Package / Case	-	6 Leads
Phase Difference	180 °	180 °
Return Loss (Min) [Min]	10 dB	10 dB

Part	Return Loss (Min) [Min]	Insertion Loss (Max) [Max]	Package / Case	Frequency Range [Max]	Frequency Range [Min]	Mounting Type	Phase Difference	Impedance - Unbalanced/Balanced [custom]	Impedance - Unbalanced/Balanced [custom]	Package / Case	Package / Case	Impedance - Unbalanced/Balanced	Impedance - Unbalanced/Balanced
Walsin Technology Corporation RFBLN1608050AM8T62	10 dB	1.2 dB	6-SMD	2.5 GHz	2.4 GHz	Surface Mount	180 °	50 Ohm	50
Walsin Technology Corporation RFBLN1608060AF6T50		1 dB	0603	2.5 GHz	2.4 GHz	Surface Mount	180 °			1608	6 Leads	50 Ohm	-Ohm
