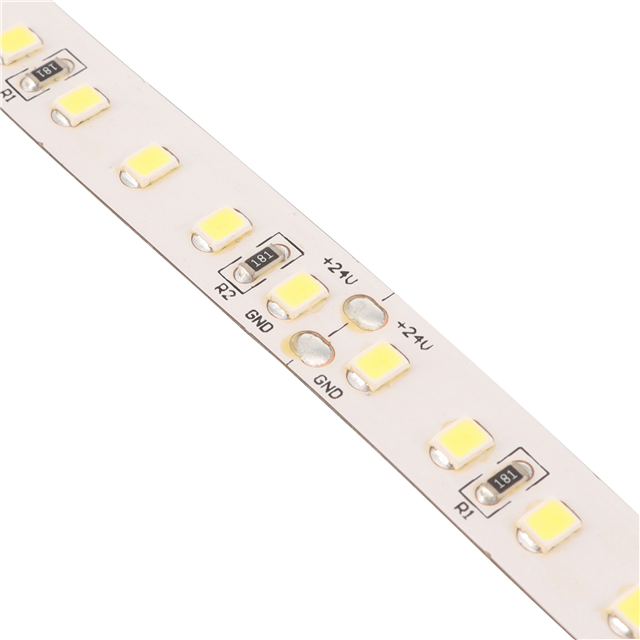

AB-FA02465-19700-8A1

Active

American Bright Optoelectronics Corporation

LED MOD AB-FA WH LNR STRP 6500K

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LED MOD AB-FA WH LNR STRP 6500K

Technical Specifications

Parameters and characteristics for this part

Specification	AB-FA02465-19700-8A1

CCT (K)	6500 K
Color	Cool, White
Configuration	Linear Light Strip, Flexible
CRI (Color Rendering Index)	80
Current - Test	330 mA
Features	IP20
Height [z]	1.6 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	96 lm/W
Luminous Flux @ Current/Temperature	760 lm
Size / Dimension	50.00mm L per Segment
Size / Dimension [x]	5000 mm
Size / Dimension [y]	8 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	24 V

LED MOD AB-FA WH LNR STRP 6500K

Part	Voltage - Forward (Vf) (Typ)	Lens Type	Configuration	Lumens/Watt @ Current - Test	Features	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Type	Viewing Angle	Luminous Flux @ Current/Temperature	CCT (K)	CRI (Color Rendering Index)	Color	Current - Test
American Bright Optoelectronics Corporation AB-FA02465-19700-8A1	24 V	Flat	Flexible, Linear Light Strip	96 lm/W	IP20	1.6 mm	8 mm	5000 mm	50.00mm L per Segment	LED Module	120 °	760 lm	6500 K	80	Cool, White	330 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module AB-FA White, Cool Linear Light Strip, Flexible

Technical documentation and resources

No documents available
