1410BPT
ActiveKanebridge
SELF-TAPPING SCREW - TYPE B - PH
1410BPT
ActiveKanebridge
SELF-TAPPING SCREW - TYPE B - PH
Description
General part information
1410BPT

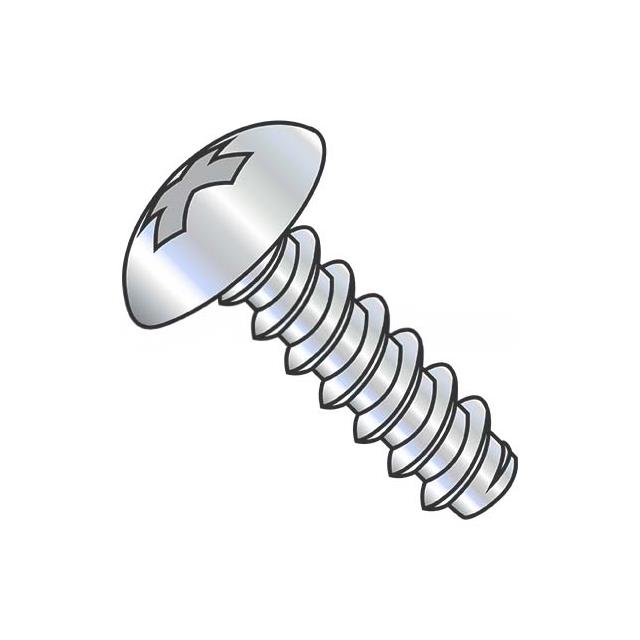

1/4"-14 Truss Head Self-Tapping Screw Phillips Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1410BPT |
|---|---|
| Drive Type | Phillips |
| Features | Standard |
| Head Diameter | 0.544 in |
| Head Height | 0.138 in |
| Length - Below Head | 0.625 in |
| Length - Overall | 0.763 in |
| Material | Steel |
| Plating | Zinc |
| Screw Head Type | Truss Head |
| Thread Pitch (TPI) | 14 TPI |
| Thread Size (Nominal) | 0.25 in |
| Type | Self-Tapping Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
