3501

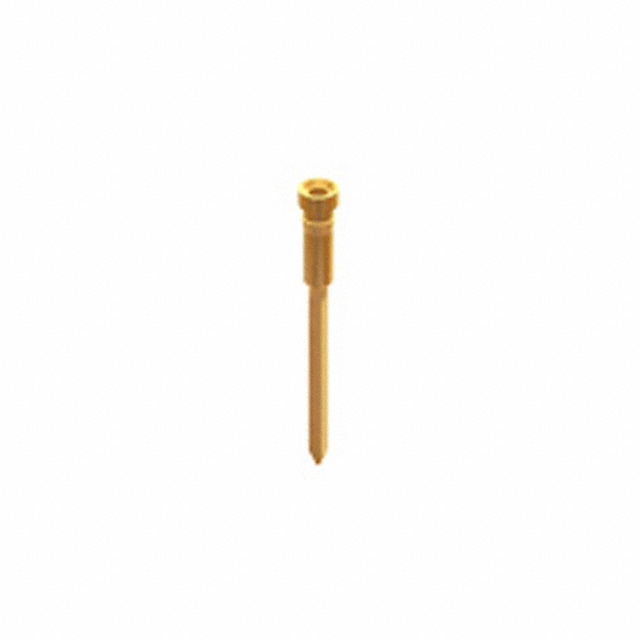

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Press-Fit
Technical Specifications
Parameters and characteristics for this part
| Specification | 3501 |
|---|---|
| Accepts Pin Diameter (Max) | 0.025 in |
| Accepts Pin Diameter (Min) | 0.015 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Ąin |
| Contact Material | Beryllium Copper |
| Flange Diameter | 0.072 in |
| Length - Overall | 0.553 in |
| Mounting Hole Diameter | 0.055 in |
| Socket Depth | 0.16 in |
| Tail Diameter | 0.025 in |
| Tail Diameter Shape | Square |
| Tail Type | Standard Tail |
| Termination | Press-Fit |
