ARK865CHSSLT
ActiveFIBOX Enclosures

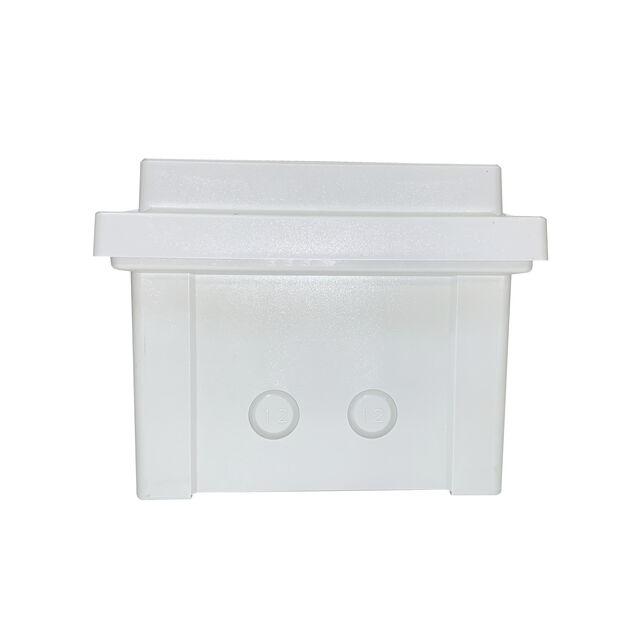

ARCA JIC 8 X 6 X 5 WITH KNOCKOUT
ARK865CHSSLT
ActiveFIBOX Enclosures
ARCA JIC 8 X 6 X 5 WITH KNOCKOUT
Description
General part information
ARK865CHSSLT
Enclosure Plastic, Polycarbonate Light Gray, Transparent Cover Cover Included, Hinged Door 9.170" L x 7.060" W (232.92mm x 179.32mm) X 5.710" (145.03mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | ARK865CHSSLT |
|---|---|
| Area (L x W) | 64.8 in² |
| Color | Transparent Cover, Light Gray |
| Container Type | Enclosure |
| Design | Hinged Door, Cover Included |
| Height | 5.71 in |
| Material | Polycarbonate, Plastic |
| Ratings | 13, IP67, UL 508, 6, 4X, 12K, IP66, 6P, 12, NEMA 4 |
| Size / Dimension Length | 9.17 in |
| Size / Dimension Width | 7.06 in |
| Thickness | 0.13 in |
