SC54-221
ActiveSignal Transformer
FIXED IND 220UH 480MA 1.57OHM SM
SC54-221
ActiveSignal Transformer
FIXED IND 220UH 480MA 1.57OHM SM
Description
General part information
SC54-221

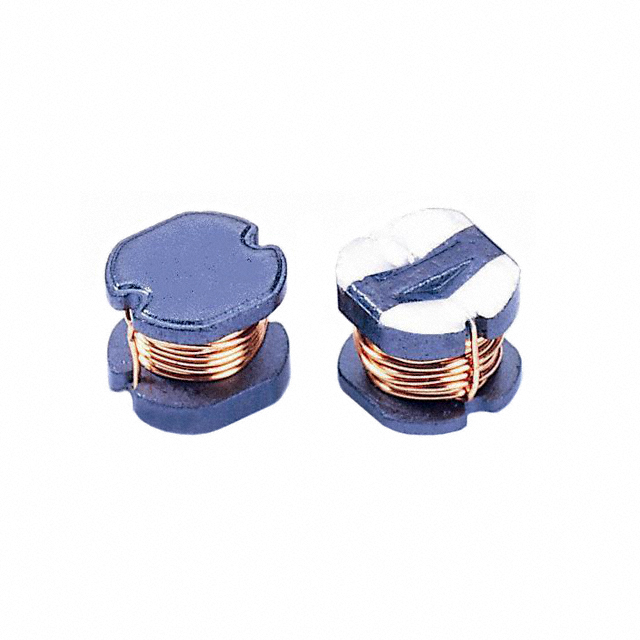

220 µH Unshielded Wirewound Inductor 480 mA 1.57Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SC54-221 |
|---|---|
| Current - Saturation (Isat) | 350 mA |
| Current Rating | 480 mA |
| DC Resistance (DCR) (Max) | 1.57 Ohm |
| Height - Seated (Max) | 0.189 in |
| Inductance | 220 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.24 in |
| Size / Dimension Width | 0.217 in |
| Tolerance | 20 % |
| Type | Wirewound |
