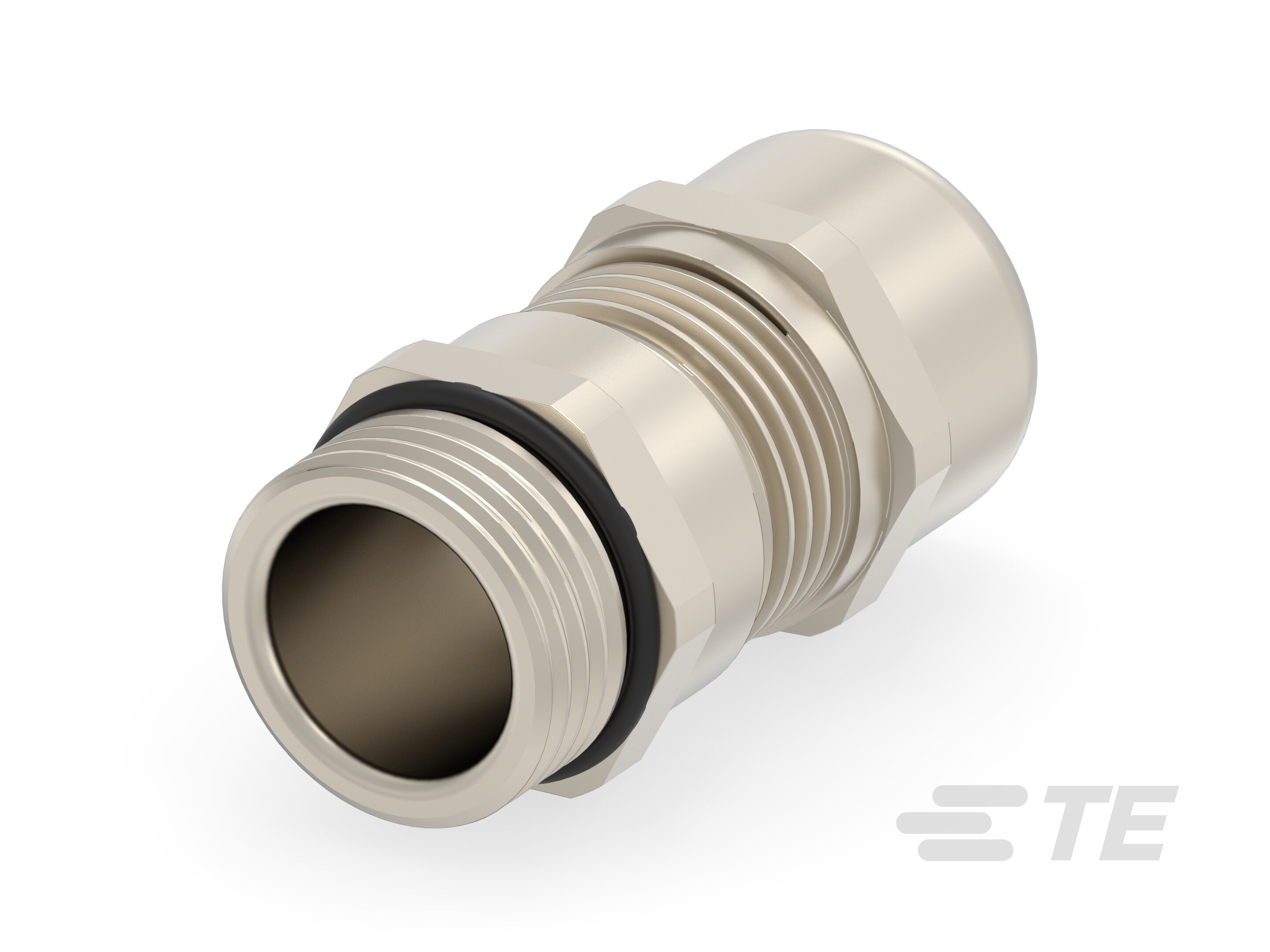

VENT CG,BRASS,PG11,5-9,8-1-2490540-4

1-2490540-4

Active
TE Connectivity AMP Connectors

VENT CG,BRASS,PG11,5-9,8

Find alt
VENT CG,BRASS,PG11,5-9,8-1-2490540-4

1-2490540-4

Active
TE Connectivity AMP Connectors

VENT CG,BRASS,PG11,5-9,8

Find alt

Description

General part information

1-2490540-4

Ventilated Cable Gland, Brass, 5 – 9 mm Clamping Range, Nickel Plating, IP67

Technical Specifications

Parameters and characteristics for this part

Specification1-2490540-4
ColorSilver
Ingress Protection DescriptionDust Tight, Waterproof, Water Resistant
Ingress Protection IP RatingIP67, IP66
MaterialNickel Plated, Brass
Operating Temperature (Max)100 °C
Operating Temperature (Min)-20 °C
Outside Cable Diameter (Max)0.354 in
Outside Cable Diameter (Min)0.197 in
Thread Length0.315 in
Thread SizePG11
TypeCable Gland
