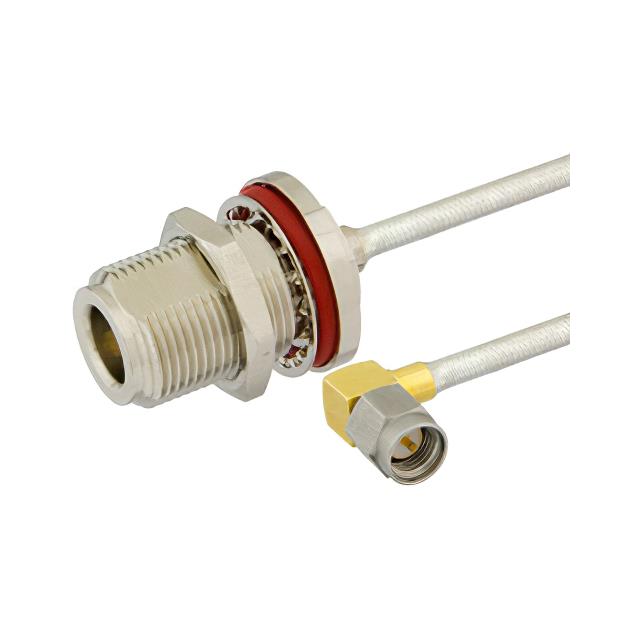

Specification	PE39456-18

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Connector Impedance	50 Ohms
Frequency - Max	10 GHz
Length	18 in
Overall Impedance	50 Ohms
Style	SMA, N-Type
