1215C SL005

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 5 CONDUCTOR, 24 AWG, 0.23 MM², 100 FT, 30.5 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsComm, Control, Industrial Cable Catalog Technical Data Sheet EN

1215C SL005

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 5 CONDUCTOR, 24 AWG, 0.23 MM², 100 FT, 30.5 M

Deep-Dive with AI

DocumentsComm, Control, Industrial Cable Catalog Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1215C SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.187 in
Jacket (Insulation) Diameter [diameter]	4.75 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	5
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	24 AWG

1215C Series

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 5 CONDUCTOR, 24 AWG, 0.23 MM², 100 FT, 30.5 M

Part	Cable Type	Number of Conductors	Shield Type	Usage	Jacket (Insulation) Material	Wire Gauge	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Shield Coverage	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Length [x]	Length [x]
ALPHA WIRE 1215C SL005	Multi-Conductor	5	Foil	Communication, Control	Poly-Vinyl Chloride (PVC)	24 AWG	Slate	32 AWG	7	Poly-Vinyl Chloride (PVC)	300 V	0.187 in	4.75 mm	Drain Wire	100 %	Aluminum	-20 C	80 C	Copper, Tinned	30.5 m	100 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 262.67
		3	$ 243.36
		5	$ 238.02
Newark	Spool of 100	1	$ 390.14
		10	$ 386.20

Description

General part information

1215C Series

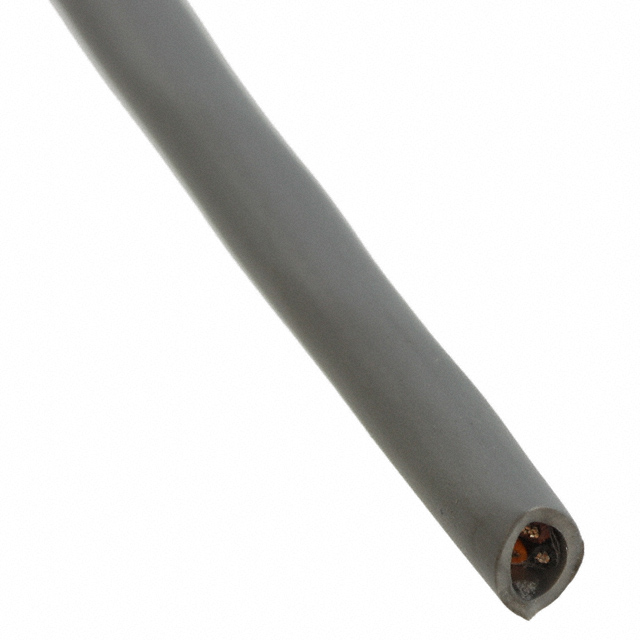

The 1215C SL005 is a 5-core Shielded Cable with tinned copper conductor and a PVC insulator. This multi-core cable comes with a slate PVC jacket, aluminium/Mylar tape foil shield and foil facing outward.
