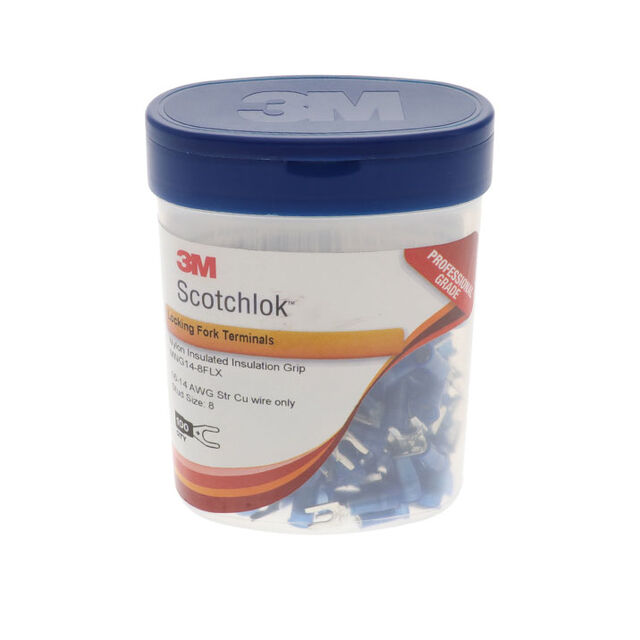

MNG14-8FLX-BOTTLE

Active

CONN SPADE TERM 14-16AWG 8 100PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MNG14-8FLX-BOTTLE

Active

CONN SPADE TERM 14-16AWG 8 100PC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 66.30

Description

General part information

MNG14 Series

Blue 8 Stud Spade Terminal Connector Crimp 14-16 AWG

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MNG14-8FLX-BOTTLE	MNG14 Series

Color	Blue	Blue
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper, Brass
Gender	-	Female, Male
Insulation	Insulated	Insulated, Non-Mating End Insulated, Fully Insulated
Insulation Diameter	-	3.68 mm
Insulation Diameter	-	0.145 "
Length - Overall	-	0.77 - 18.03 mm
Length - Overall	-	0.71 "
Length - Overall	-	19.56 mm
Length - Overall [x]	0.89 in	0.81 - 1.14 in
Length - Overall [x]	22.61 mm	20.57 - 28.96 mm
Length - Ring Center to Termination	-	0.29 in
Length - Ring Center to Termination	-	7.37 mm
Length - Ring Center to Termination [x]	0.25 in	0.25 in
Length - Ring Center to Termination [x]	6.35 mm	6.35 mm
Length - Termination [custom]	11.68 mm	11.68 mm
Length - Termination [custom]	0.46 in	0.46 in
Material - Insulation	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Wire Entries	-	2
Stud/Tab Size	8 Stud	3/8 Stud, 8 Stud
Stud/Tab Size	-	0.25 - 10 Stud
Tab Thickness	-	0.02 - 0.032 "
Tab Thickness	-	0.51 - 0.81 mm
Tab Width	-	2.79 - 6.35 mm
Tab Width	-	0.11 - 0.25 in
Terminal Type	Snap, Spring	Flanged, Circular, Standard, Snap, Spring, Butt Splice, Inline, Individual Openings, Stacked
Termination	Crimp	Crimp
Thickness	-	0.03 in
Thickness	-	0.76 mm
Width - Outer Edges	-	0.24 - 0.56 "
Width - Outer Edges	-	6.1 - 14.22 mm
Width - Outer Edges	-	7.87 - 8.64 mm
Width - Outer Edges	-	0.34 in

MNG14 Series

CONN SPADE TERM 14-16AWG 6 100PC

Part	Contact Material	Contact Finish	Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Mounting Type	Length - Overall	Length - Overall	Color	Length - Termination [custom]	Length - Termination [custom]	Stud/Tab Size	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Material - Insulation	Termination	Terminal Type	Stud/Tab Size	Thickness	Thickness	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges	Length - Overall	Insulation Diameter	Insulation Diameter [diameter]	Gender	Tab Thickness	Tab Thickness	Tab Width	Tab Width
3M MNG14-6FFB/SX-BOTTLE	Copper, ETP	Tin	Insulated	0.25 "	6.35 mm	Free Hanging (In-Line)	18.03 mm	0.71 "	Blue	11.68 mm	0.46 in	6 Stud	0.25 in	6.35 mm	Nylon, Polyamide (PA)	Crimp	Flanged
3M MNG14-38RX-BOTTLE	Copper, ETP	Tin	Insulated	0.56 in	14.22 mm	Free Hanging (In-Line)			Blue						Nylon, Polyamide (PA)	Crimp	Circular	3/8 Stud	0.03 in	0.76 mm	1.14 in	28.96 mm
3M MNG14-8R/SK	Copper, ETP	Tin	Insulated	0.25 "	6.35 mm	Free Hanging (In-Line)			Blue						Nylon, Polyamide (PA)	Crimp	Circular	8 Stud	0.03 in	0.76 mm	0.81 in	20.57 mm
3M MNG14-6FFBK	Copper, ETP	Tin	Insulated			Free Hanging (In-Line)			Blue	11.68 mm	0.46 in	6 Stud	0.25 in	6.35 mm	Nylon, Polyamide (PA)	Crimp	Flanged				0.86 "	21.84 mm
3M MNG14-8FFBK	Copper, ETP	Tin	Insulated			Free Hanging (In-Line)			Blue	11.68 mm	0.46 in		0.25 in	6.35 mm	Nylon, Polyamide (PA)	Crimp	Flanged	8 Stud			0.86 "	21.84 mm
3M MNG14-6FBK	Copper, ETP	Tin	Insulated			Free Hanging (In-Line)			Blue	11.68 mm	0.46 in	6 Stud	0.25 in	6.35 mm	Nylon, Polyamide (PA)	Crimp	Standard				0.86 "	21.84 mm
3M MNG14-14R/SX-BOTTLE	Copper, ETP	Tin	Insulated	0.47 in	11.94 mm	Free Hanging (In-Line)			Blue			0.25 Stud			Nylon, Polyamide (PA)	Crimp	Circular		0.03 in	0.76 mm	1.09 in	27.69 mm
3M MNG14-8FLX-BOTTLE	Copper, ETP	Tin	Insulated			Free Hanging (In-Line)			Blue	11.68 mm	0.46 in		0.25 in	6.35 mm	Nylon, Polyamide (PA)	Crimp	Snap, Spring	8 Stud			0.89 in	22.61 mm
3M MNG14-8R/LK	Copper, ETP	Tin	Insulated	0.31 in		Free Hanging (In-Line)			Blue						Nylon, Polyamide (PA)	Crimp	Circular	8 Stud	0.03 in	0.76 mm	0.94 in	23.88 mm	7.87 mm
3M MNG14-187DFK	Brass	Tin	Non-Mating End Insulated			Free Hanging (In-Line)	0.77 in		Blue							Crimp	Standard							19.56 mm	3.68 mm	0.145 "	Female	0.02 "	0.51 mm	4.75 mm	0.187 in
