BVT-Z-R0003-1.0
ActiveIsabellenhuette USA

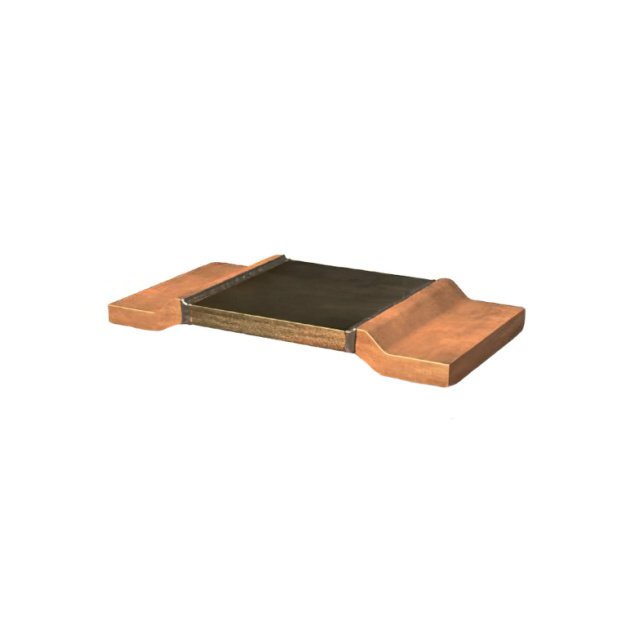

RESISTOR - ISA-WELD SHUNT, 0.000
BVT-Z-R0003-1.0
ActiveIsabellenhuette USA
RESISTOR - ISA-WELD SHUNT, 0.000
Description
General part information
BVT-Z-R0003-1.0
0.3 mOhms ±1% 6W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | BVT-Z-R0003-1.0 |
|---|---|
| Features | Moisture Resistant, Automotive AEC-Q200, Current Sense |
| Height - Seated (Max) | 0.015 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | 2512 (6432 Metric), 2512 (6332 Metric) |
| Package Name | 2512 |
| Power (Watts) | 6 W |
| Ratings | AEC-Q200 |
| Resistance | 300 µOhms |
| Size / Dimension Length | 0.25 in |
| Size / Dimension Width | 0.119 in |
| Temperature Coefficient | 175 ppm/°C |
| Tolerance | 1 % |
