100024209

Active

Telegartner Inc

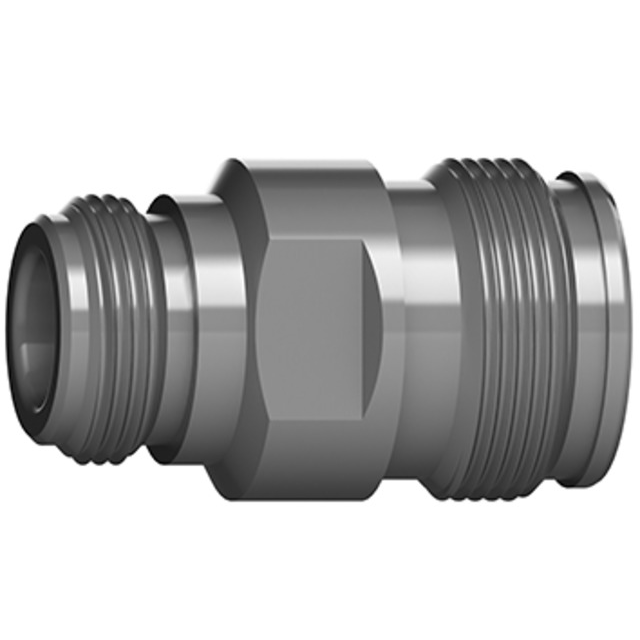

ADAPT STR NF - 4.3-10F

Search across all available documentation for this part.

Active

Telegartner Inc

ADAPT STR NF - 4.3-10F

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100024209	J01027 Series

Adapter Series	4.3/10 to N	N, 2.2/5, 4.3/10 to N
Adapter Type	Jack to Jack	Plug to Jack, Jack to Jack
Center Contact Material	Copper Alloy	Beryllium Copper, Copper Alloy
Center Contact Plating	Gold, Nickel Phosphorous	Gold, Nickel Phosphorous
Center Gender	Female to Female	Male to Female, Female to Female
Conversion Type	Between Series	Between Series
Convert From (Adapter End)	4.3/10 Jack, Female Socket	2.2/5 Plug, Male Pin, 4.3/10 Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz	6000 MHz
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Style	Straight	Straight

COAX ADAPT N TO 2.2/5

Part	Adapter Series	Ingress Protection	Center Gender	Conversion Type	Style	Frequency - Max [Max]	Center Contact Material	Mounting Type	Convert From (Adapter End)	Dielectric Material	Convert To (Adapter End)	Adapter Type	Impedance	Center Contact Plating
Telegartner Inc 100024192	2.2/5, N	IP68 - Dust Tight, Waterproof	Male to Female	Between Series	Straight	6000 MHz	Beryllium Copper	Free Hanging (In-Line)	2.2/5 Plug, Male Pin	Polytetrafluoroethylene (PTFE)	Female Socket, N Jack	Plug to Jack	50 Ohms
Telegartner Inc 100024209	4.3/10 to N	IP68 - Dust Tight, Waterproof	Female to Female	Between Series	Straight	6000 MHz	Copper Alloy	Free Hanging (In-Line)	4.3/10 Jack, Female Socket	Polytetrafluoroethylene (PTFE)	Female Socket, N Jack	Jack to Jack	50 Ohms	Gold, Nickel Phosphorous

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 4.3/10 Jack, Female Socket To N Jack, Female Socket 50 Ohms
