ANT-2.4-FPC-LV50M4
ActiveTE Connectivity Linx

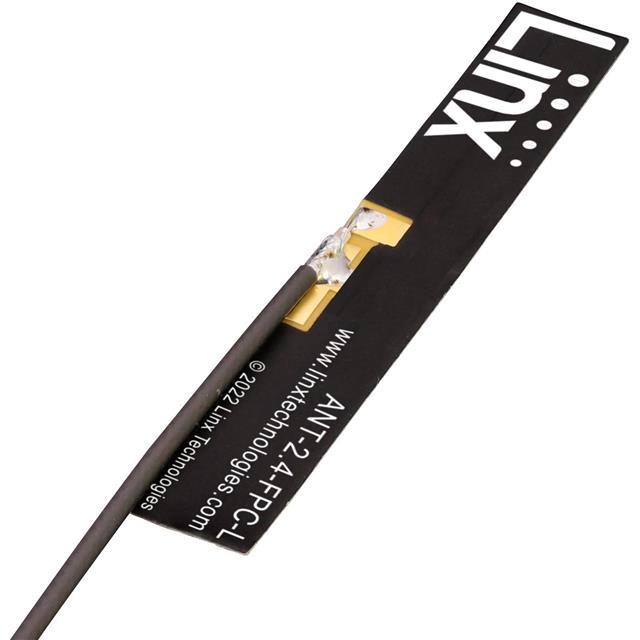

ANT 2.4 FPC 45X7 50MM CBL MHF4
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT-2.4-FPC-LV50M4
ActiveTE Connectivity Linx
ANT 2.4 FPC 45X7 50MM CBL MHF4
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ANT-2.4-FPC-LV50M4 | ANT-2.4-FPC-LV Series |
|---|---|---|
| Antenna Type | PCB Trace | PCB Trace |
| Applications | Wi-Fi, Bluetooth, ISM, Zigbee™ | Wi-Fi, Bluetooth, ISM, Zigbee™ |
| Features | 50 mm | 50 - 200 mm |
| Features | Cable | Cable - 150mm, Cable |
| Frequency Range [Max] | 2.5 GHz | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz | 2.4 GHz |
| Gain | 4.3 dBi | 4.3 dBi |
| Height (Max) | 0.1 mm | 0.1 mm |
| Height (Max) [Max] | 0.004 in | 0.004 in |
| Mounting Type | Adhesive | Adhesive |
| Number of Bands | 1 | 1 |
| Power - Max [Max] | 2 W | 2 W |
| Termination | MHF4 | IPEX MHF1 (U.FL), MHF4 |
| VSWR | 1.7 | 1.7 |
ANT-2.4-FPC-LV Series
ANT 2.4 FPC 45X7 150MM CBL UFL
| Part | Gain | Power - Max [Max] | Height (Max) | Height (Max) [Max] | Features | Antenna Type | Frequency Range [Max] | Frequency Range [Min] | VSWR | Applications | Mounting Type | Number of Bands | Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Linx ANT-2.4-FPC-LV150UF | 4.3 dBi | 2 W | 0.1 mm | 0.004 in | Cable - 150mm | PCB Trace | 2.5 GHz | 2.4 GHz | 1.7 | Bluetooth, ISM, Wi-Fi, Zigbee™ | Adhesive | 1 | IPEX MHF1 (U.FL) | |
TE Connectivity Linx ANT-2.4-FPC-LV50UF | 4.3 dBi | 2 W | 0.1 mm | 0.004 in | Cable | PCB Trace | 2.5 GHz | 2.4 GHz | 1.7 | Bluetooth, ISM, Wi-Fi, Zigbee™ | Adhesive | 1 | IPEX MHF1 (U.FL) | 50 mm |
TE Connectivity Linx ANT-2.4-FPC-LV100M4 | 4.3 dBi | 2 W | 0.1 mm | 0.004 in | Cable | PCB Trace | 2.5 GHz | 2.4 GHz | 1.7 | Bluetooth, ISM, Wi-Fi, Zigbee™ | Adhesive | 1 | MHF4 | 100 mm |
TE Connectivity Linx ANT-2.4-FPC-LV100MX | 4.3 dBi | 2 W | 0.1 mm | 0.004 in | Cable | PCB Trace | 2.5 GHz | 2.4 GHz | 1.7 | Bluetooth, ISM, Wi-Fi, Zigbee™ | Adhesive | 1 | 100 mm | |
TE Connectivity Linx ANT-2.4-FPC-LV50M4 | 4.3 dBi | 2 W | 0.1 mm | 0.004 in | Cable | PCB Trace | 2.5 GHz | 2.4 GHz | 1.7 | Bluetooth, ISM, Wi-Fi, Zigbee™ | Adhesive | 1 | MHF4 | 50 mm |
TE Connectivity Linx ANT-2.4-FPC-LV150M4 | 4.3 dBi | 2 W | 0.1 mm | 0.004 in | Cable - 150mm | PCB Trace | 2.5 GHz | 2.4 GHz | 1.7 | Bluetooth, ISM, Wi-Fi, Zigbee™ | Adhesive | 1 | MHF4 | |
TE Connectivity Linx ANT-2.4-FPC-LV200UF | 4.3 dBi | 2 W | 0.1 mm | 0.004 in | Cable | PCB Trace | 2.5 GHz | 2.4 GHz | 1.7 | Bluetooth, ISM, Wi-Fi, Zigbee™ | Adhesive | 1 | IPEX MHF1 (U.FL) | 200 mm |
TE Connectivity Linx ANT-2.4-FPC-LV100UF | 4.3 dBi | 2 W | 0.1 mm | 0.004 in | Cable | PCB Trace | 2.5 GHz | 2.4 GHz | 1.7 | Bluetooth, ISM, Wi-Fi, Zigbee™ | Adhesive | 1 | IPEX MHF1 (U.FL) | 100 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 2000 | $ 3.50 | |
Description
General part information
ANT-2.4-FPC-LV Series
2.45GHz Bluetooth, ISM, Wi-Fi, Zigbee™ PCB Trace RF Antenna 2.4GHz ~ 2.5GHz 4.3dBi MHF4 Adhesive
