1896/6L SL005

Active

ALPHA WIRE

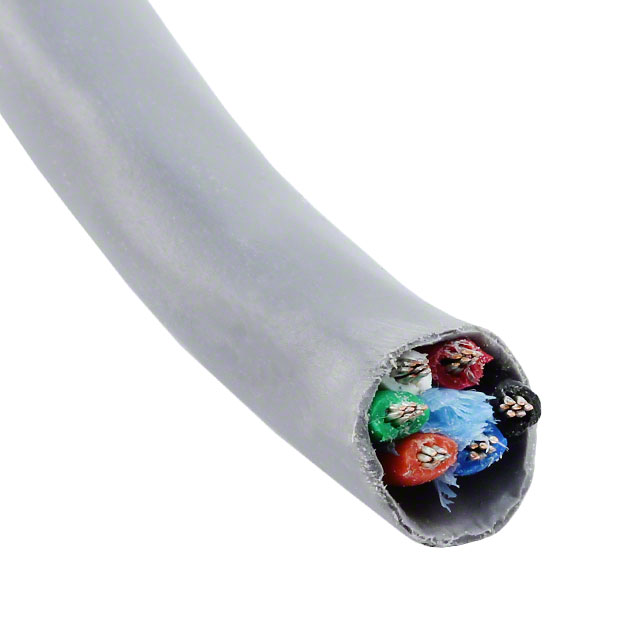

CABLE 6COND 20AWG SLATE 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 6COND 20AWG SLATE 100'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1896/6L SL005	1896/6L Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Low Smoke Zero Halogen (LSZH)	Low Smoke Zero Halogen (LSZH)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	28	28
Conductor Strand [custom]	7	7
Jacket (Insulation) Diameter [diameter]	0.276 in	0.276 in
Jacket (Insulation) Diameter [diameter]	7.01 mm	7.01 mm
Jacket (Insulation) Thickness	0.025 in	0.025 in
Jacket (Insulation) Thickness	0.635 mm	0.635 mm
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 - 152.4 m
Length [x]	100 ft	100 - 500 ft
Number of Conductors	6	6
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	20 AWG	20 AWG

CABLE 6COND 20AWG SLATE 100'

Part	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Number of Conductors	Length [x]	Length [x]	Usage	Conductor Insulation	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Cable Type	Jacket Color	Length	Length
ALPHA WIRE 1896/6L SL005	28	7	20 AWG	6	30.5 m	100 ft	Communication, Control	Low Smoke Zero Halogen (LSZH)	300 V	0.025 in	0.635 mm	0.276 in	7.01 mm	Copper, Tinned	Multi-Conductor	Slate
ALPHA WIRE 1896/6L SL002	28	7	20 AWG	6	152.4 m	500 '	Communication, Control	Low Smoke Zero Halogen (LSZH)	300 V	0.025 in	0.635 mm	0.276 in	7.01 mm	Copper, Tinned	Multi-Conductor	Slate
ALPHA WIRE 1896/6L SL001	28	7	20 AWG	6			Communication, Control	Low Smoke Zero Halogen (LSZH)	300 V	0.025 in	0.635 mm	0.276 in	7.01 mm	Copper, Tinned	Multi-Conductor	Slate	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Conductor Multi-Conductor Cable Slate 20 AWG 100.0' (30.5m)
