9460 0605000

Active

Belden Inc.

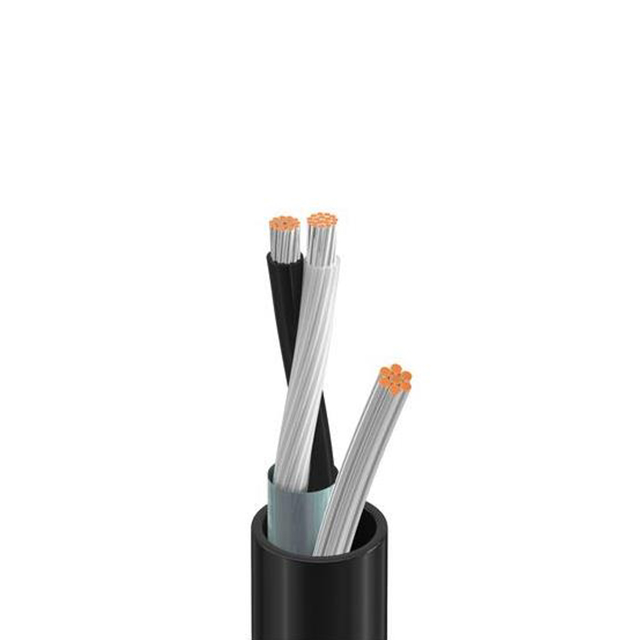

CABLE 2COND 18AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 18AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	9460 0605000

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.84 mm
Jacket (Insulation) Diameter [diameter]	0.23 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.762 mm
Jacket (Insulation) Thickness	0.03 in
Jacket Color	Chrome
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Features	Shield Coverage	Conductor Insulation	Shield Material	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Shield Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Jacket (Insulation) Material	Cable Type	Length [x]	Length [x]
Belden Inc. 9460 060U500	18 AWG	16	30 AWG	Drain Wire	100 %	Polyethylene (PE)	Aluminum	2	-20 C	60 °C	Audio Control Instrumentation	Foil	0.762 mm	0.03 in	Chrome	Copper Tinned	5.84 mm	0.23 in	300 V	Poly-Vinyl Chloride (PVC)	Multi-Conductor	500 '	152.4 m
Belden Inc. 9460 0605000	18 AWG	16	30 AWG	Drain Wire	100 %	Polyethylene (PE)	Aluminum	2	-20 C	60 °C	Audio Control Instrumentation	Foil	0.762 mm	0.03 in	Chrome	Copper Tinned	5.84 mm	0.23 in	300 V	Poly-Vinyl Chloride (PVC)	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 1.98

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Chrome 18 AWG Foil 5000' (1524.0m)
