Description
General part information

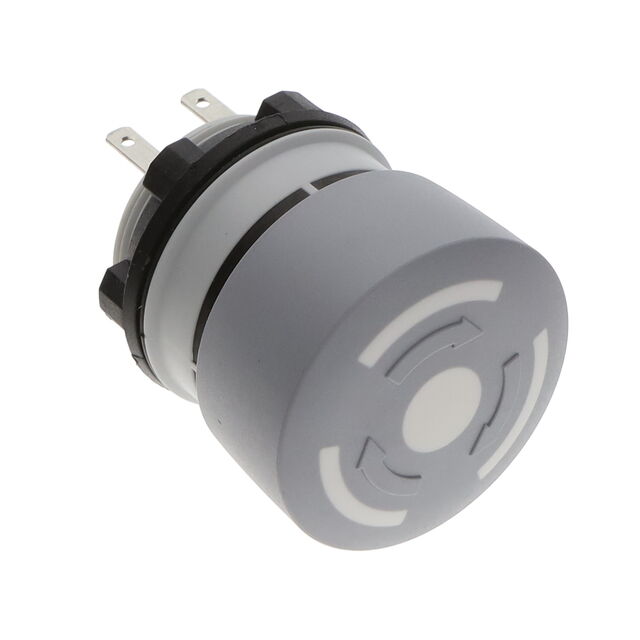

84-6240.0020
Pushbutton Switch DPST-NC Standard Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 84-6240.0020 |
|---|---|
| Actuator Type | Button, Round, Mushroom |
| Circuit | DPST-NC |
| Color - Actuator/Cap | Gray |
| Current Rating | 2 A, 3 A |
| Electrical Life (Cycles) | 50000 |
| Ingress Protection | IP20 |
| Mechanical Life (Cycles) | 250000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 22.3 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.110") | 0.11 in |
| Switch Function | On-Off |
| Termination Style | Quick Connect, Solder |
| Type | Standard |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 24 V |
