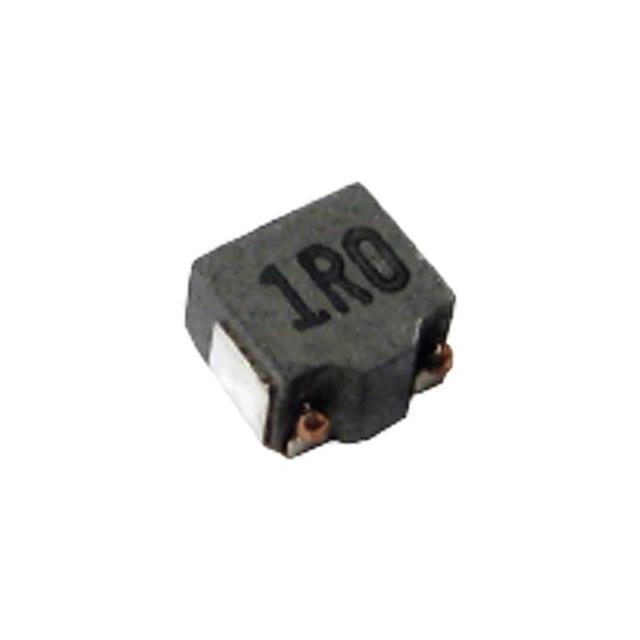

CTSPMA3020F-1R0M
ActiveCentral Technologies
POWR INDUCTOR SMD SHIELDED 1.0UH
CTSPMA3020F-1R0M
ActiveCentral Technologies
POWR INDUCTOR SMD SHIELDED 1.0UH
Description
General part information
CTSPMA3020F-1R0M
1 µH Shielded Inductor 5.6 A 21.3mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CTSPMA3020F-1R0M |
|---|---|
| Current - Saturation (Isat) | 5.6 A |
| Current Rating | 5.6 A |
| DC Resistance (DCR) (Max) | 21.3 mOhm |
| Height - Seated (Max) | 0.079 in |
| Inductance | 1 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.134 in |
| Size / Dimension Width | 0.134 in |
| Tolerance | 20 % |
