XQERED-H0-0000-000000402

Active

Cree LED

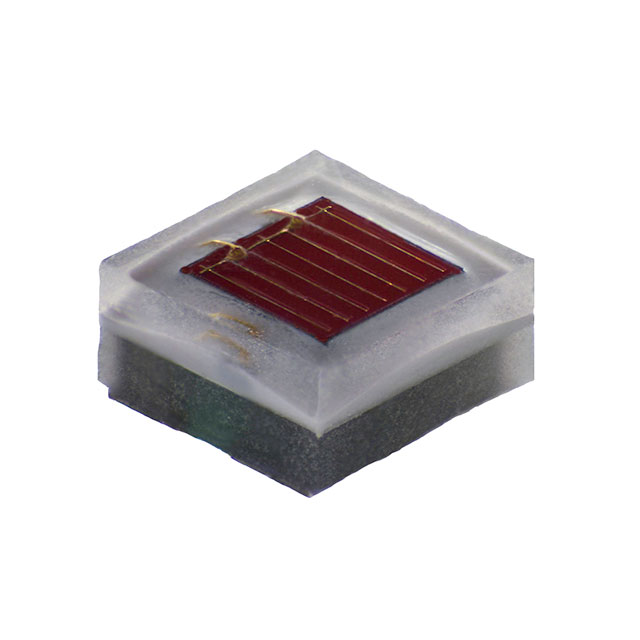

LED XLAMP XQE RED 623NM SMD

Search across all available documentation for this part.

Active

Cree LED

LED XLAMP XQE RED 623NM SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XQERED-H0-0000-000000402	XQERED Series

Color	Red	Red
Current - Max [Max]	1 A	1 A
Current - Test	350 mA	350 mA
Height - Seated (Max)	-	1.73 mm
Height - Seated (Max) [Max] [z]	0.035 "	0.035 - 0.068 "
Height - Seated (Max) [Max] [z]	0.9 mm	0.9 mm
Lumens/Watt @ Current - Test	70 lm/W	64 - 100 lm/W
Luminous Flux @ Current/Temperature	54 lm	49 - 77 lm
Luminous Flux @ Current/Temperature	-	81 lm
Luminous Flux @ Current/Temperature	-	74 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	0606, 1616 Metric	0606, 1616 Metric
Size / Dimension [x]	1.6 mm	1.6 mm
Size / Dimension [x]	0.063 in	0.063 in
Size / Dimension [y]	0.063 in	0.063 in
Size / Dimension [y]	1.6 mm	1.6 mm
Supplier Device Package	SMD	SMD
Viewing Angle	125 °	125 - 130 °
Voltage - Forward (Vf) (Typ)	2.2 V	2.2 V
Wavelength	623 nm	623 nm
Wavelength	-	620 nm
Wavelength	-	630 nm

HIGH BRIGHTNESS LED, XLAMP XQ-E SERIES, RED, 630 NM, 130 °, 73.9 LM, 1 A

Part	Current - Max [Max]	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Wavelength [Min]	Wavelength [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Supplier Device Package	Color	Mounting Type	Package / Case	Current - Test	Voltage - Forward (Vf) (Typ)	Viewing Angle	Wavelength	Height - Seated (Max) [Max] [z]
Cree LED XQERED-00-0000-000000801	1 A	100 lm/W	0.063 in	1.6 mm	0.063 in	1.6 mm	620 nm	630 nm	0.068 "	1.73 mm	81 lm	77 lm	74 lm	SMD	Red	Surface Mount	0606, 1616 Metric	350 mA	2.2 V	130 °
Cree LED XQERED-H2-0000-000000302	1 A	64 lm/W	0.063 in	1.6 mm	0.063 in	1.6 mm			0.035 "			49 lm		SMD	Red	Surface Mount	0606, 1616 Metric	350 mA	2.2 V	125 °	623 nm	0.9 mm
Cree LED XQERED-H0-0000-000000402	1 A	70 lm/W	0.063 in	1.6 mm	0.063 in	1.6 mm			0.035 "			54 lm		SMD	Red	Surface Mount	0606, 1616 Metric	350 mA	2.2 V	125 °	623 nm	0.9 mm
Cree LED XQERED-H2-0000-000000502	1 A	77 lm/W	0.063 in	1.6 mm	0.063 in	1.6 mm			0.035 "			59 lm		SMD	Red	Surface Mount	0606, 1616 Metric	350 mA	2.2 V	125 °	623 nm	0.9 mm
Cree LED XQERED-H2-0000-000000301	1 A	64 lm/W	0.063 in	1.6 mm	0.063 in	1.6 mm	620 nm	630 nm	0.035 "			49 lm		SMD	Red	Surface Mount	0606, 1616 Metric	350 mA	2.2 V	125 °		0.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 1.07

General part information

LED Lighting Color XLamp® XQ-E Red 623nm (620nm ~ 625nm) 0606 (1616 Metric)
