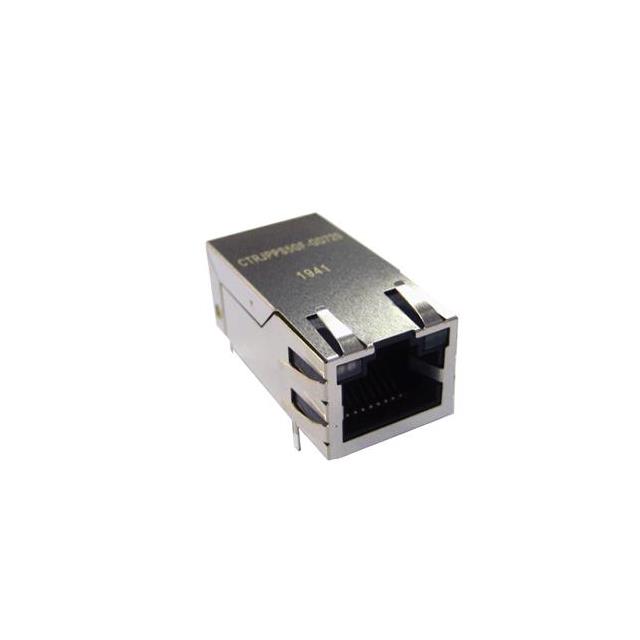

CTRJPPS5GF-GD350
ActiveCentral Technologies
5G BASE-T INTEG SINGLE PORT TAB
CTRJPPS5GF-GD350
ActiveCentral Technologies
5G BASE-T INTEG SINGLE PORT TAB
Description
General part information
CTRJPPS5GF-GD350
1 Port RJ45Through Hole 5G Base-T, AutoMDIX, Power over Ethernet (PoE)
Technical Specifications
Parameters and characteristics for this part
| Specification | CTRJPPS5GF-GD350 |
|---|---|
| Applications | Power over Ethernet (PoE), 5G Base-T, AutoMDIX |
| Connector Type | RJ45 |
| Features | Board Guide |
| Height Above Board | 0.531 in |
| LED Color | Green - Yellow, Green |
| Mounting Type | Through Hole |
| Number of Cores per Jack | 8 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Orientation Angle | 90 ° |
| Orientation Direction | Right |
| Shielding | EMI Finger, Shielded |
| Tab Direction | Up |
| Termination | Solder |
