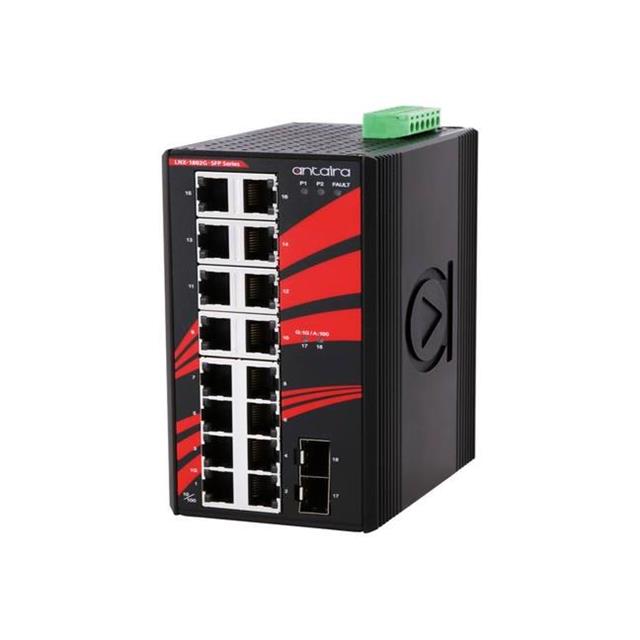

LNX-1802G-SFP-T
ActiveAntaira Technologies
UNMANAGED ETHERNET SWITCH
LNX-1802G-SFP-T
ActiveAntaira Technologies
UNMANAGED ETHERNET SWITCH
Description
General part information
LNX-1802G-SFP-T
Network Switch - Unmanaged 18 Ports IP30
Technical Specifications
Parameters and characteristics for this part
| Specification | LNX-1802G-SFP-T |
|---|---|
| Configuration | Fixed, SFP |
| Connector Type | RJ45, SFP |
| Copper Ports | 16 |
| Copper Type (Maximum) | 1000 |
| Copper Type (Minimum) | 10 |
| Copper Type (Typical) | 100 |
| Fiber Ports | 2 |
| Fiber Type | SFP |
| Ingress Protection | IP30 |
| Mounting Type | DIN Rail |
| Number of Ports | 18 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -40 °C |
| SFP/XFP Ports (Count) | 2 |
| SFP/XFP Type | SFP |
| Type | Switch - Unmanaged |
| Voltage - Input (Maximum) | 48 V |
| Voltage - Input (Minimum) | 12 V |
