787535-3
ObsoleteTE Connectivity AMP Connectors

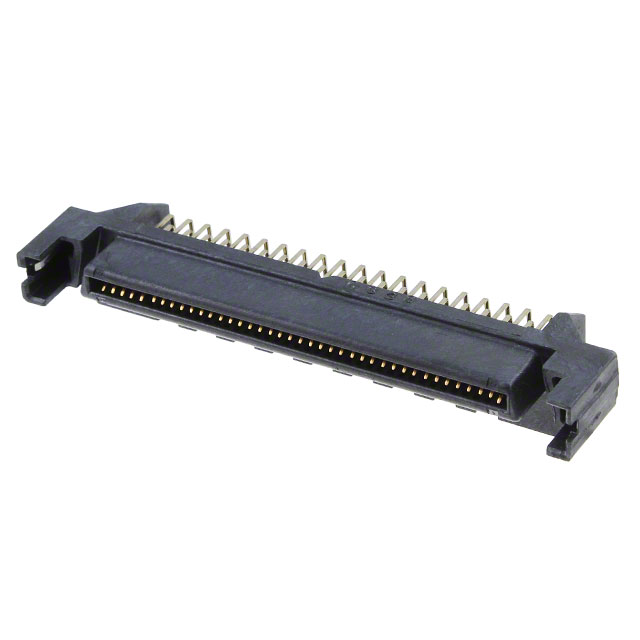

CONN BTB SCSI RCPT 80P R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsCHAMP Series I Appl Spec
787535-3
ObsoleteTE Connectivity AMP Connectors
CONN BTB SCSI RCPT 80P R/A SLDR
Deep-Dive with AI
DocumentsCHAMP Series I Appl Spec
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 787535-3 | 787535 Series |
|---|---|---|
| Connector Style | Outer Shroud Contacts | Outer Shroud Contacts |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Board Lock, Latch Lock | Board Lock, Latch Lock |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 80 | 80 |
| Number of Rows | 2 | 2 |
| Termination | Solder | Solder |
| Type | Board to Board, SCA-2, SCSI | Board to Board, SCA-2, SCSI |
787535 Series
CONN BTB RCPT 80POS R/A SOLDER
| Part | Termination | Connector Style | Contact Finish | Mounting Type | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Type | Connector Type | Number of Positions | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 787535-1 | Solder | Outer Shroud Contacts | Gold | Through Hole, Right Angle | 2 | 0.76 Ám | 30 Áin | Board to Board | Receptacle | 80 | |
TE Connectivity AMP Connectors 787535-3 | Solder | Outer Shroud Contacts | Gold | Through Hole, Right Angle | 2 | 0.76 Ám | 30 Áin | Board to Board, SCA-2, SCSI | Receptacle | 80 | Board Lock, Latch Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
787535 Series
80 Position Receptacle Connector Board to Board, SCA-2, SCSI Through Hole, Right Angle Solder
