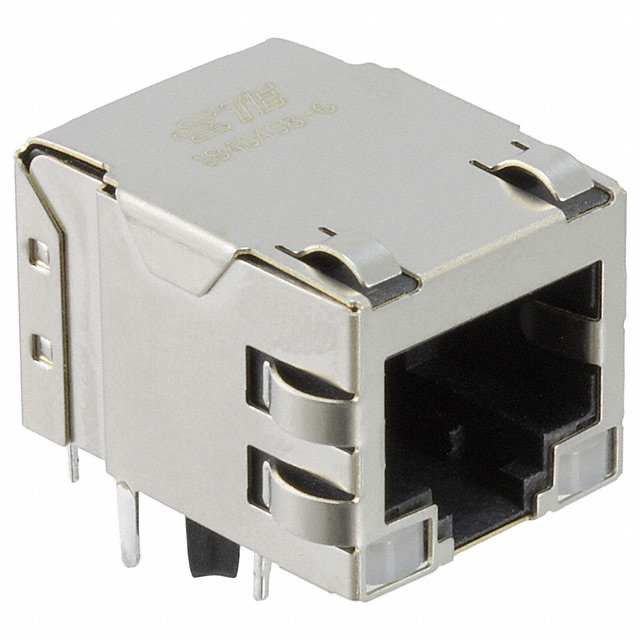

1840408-6

Active

Bel Fuse Inc.

CONN JACK 1PORT PCB

Search across all available documentation for this part.

Active

Bel Fuse Inc.

CONN JACK 1PORT PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1840408-6

Applications	AutoMDIX, 10/100/1000 Base-T
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Features	Decoupling Capacitance, Board Guide
Height Above Board [z]	14.1 mm
Height Above Board [z]	0.555 in
Housing Material	Polyethylene Terephthalate (PET), Polyester
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Cores per Jack	12
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shield Material	Brass
Shielding	Shielded, EMI Finger
Tab Direction	Down
Termination	Solder

CONN JACK 1PORT PCB

Part	Mounting Type	Number of Rows	Number of Cores per Jack	Contact Finish	Shield Material	Connector Type	Housing Material	Contact Material	Height Above Board [z]	Height Above Board [z]	Features	Number of Ports	Contact Finish Thickness	Contact Finish Thickness	Termination	Orientation	Applications	Tab Direction	LED Color	Shielding	Operating Temperature [Max]	Operating Temperature [Min]
Bel Fuse Inc. 1840408-6	Through Hole	1	12	Gold	Brass	RJ45	Polyester, Polyethylene Terephthalate (PET)	Phosphor Bronze	14.1 mm	0.555 in	Board Guide, Decoupling Capacitance	1	50 µin	1.27 µm	Solder	90 °	10/100/1000 Base-T, AutoMDIX	Down	Green, Yellow	Shielded, EMI Finger	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45 Through Hole 10/100/1000 Base-T, AutoMDIX
