3PS-1000-2-YL-SC
ActiveBRADY
SLEEVE, 1 IN DIA X 2 IN W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3PS-1000-2-YL-SC
ActiveBRADY
SLEEVE, 1 IN DIA X 2 IN W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3PS-1000-2-YL-SC | 3PS-1000 Series |
|---|---|---|
| Color | Yellow | Yellow, White |
| Label Size | - | 0.5 - 0.95 in |
| Label Size | - | 1.66 in |
| Label Size | - | 1 in |
| Label Size | - | 12.7 - 24.1 mm |
| Label Size | - | 0.95 " |
| Label Size | - | 0.45 " |
| Label Size [Max] | 0.95 ", 24.1 mm | 0.95 - 24.1 " |
| Label Size [Min] | 12.7 mm | 12.7 mm |
| Label Size [x] | 50.8 mm | 25.4 - 50.8 mm |
| Label Size [y] | 1.66 ", 42.2 mm | 1.66 - 42.2 mm |
| Label Type | Heat Shrinkable | Heat Shrinkable |
| Material | Polyolefin (PO) | Polyolefin (PO) |
| Operating Temperature [Max] | 135 °C | 135 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
3PS-1000 Series
SLEEVE, 1 IN DIA X 1 IN W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Label Type | Material | Label Size [diameter] | Label Size [y] | Label Size [x] | Label Size [y] | Label Size [x] | Label Size [diameter] | Color | Label Size [Min] | Label Size [Max] | Label Size [Max] | Label Size [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BRADY 3PS-1000-2-YL-SC-2 | 135 °C | -55 °C | Heat Shrinkable | Polyolefin (PO) | 0.5 in, 0.95 in | 1.66 in | 25.4 mm | 42.2 mm | 1 in | 12.7 mm, 24.1 mm | Yellow | ||||
BRADY 3PS-1000-2-YL-SC | 135 °C | -55 °C | Heat Shrinkable | Polyolefin (PO) | 50.8 mm | 1.66 ", 42.2 mm | Yellow | 12.7 mm | 0.95 ", 24.1 mm | ||||||
BRADY 3PS-1000-2-WT-S-2 | 135 °C | -55 °C | Heat Shrinkable | Polyolefin (PO) | 1.66 " | 1 " | White | 0.95 " | 0.45 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 285.74 | |
Description
General part information
3PS-1000 Series

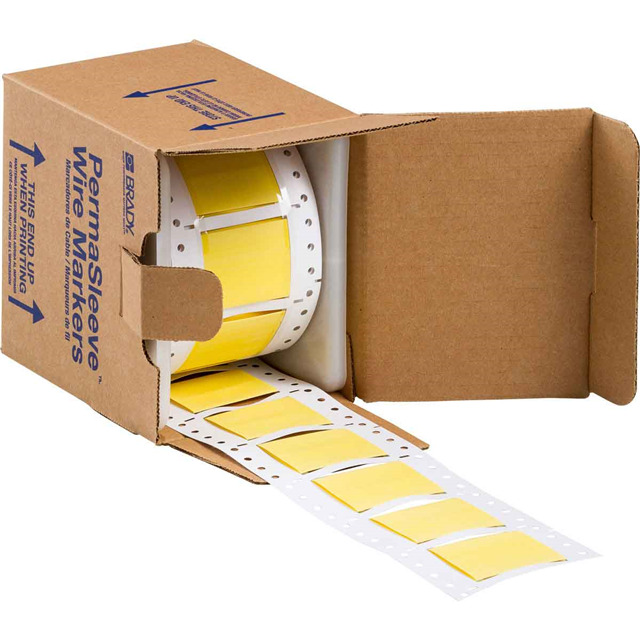

Yellow Heat Shrinkable Label 2.00" W x 1.66" H (50.8mm x 42.2mm); Cable O.D. 0.50" ~ 0.95" (12.7mm ~ 24.1mm)
