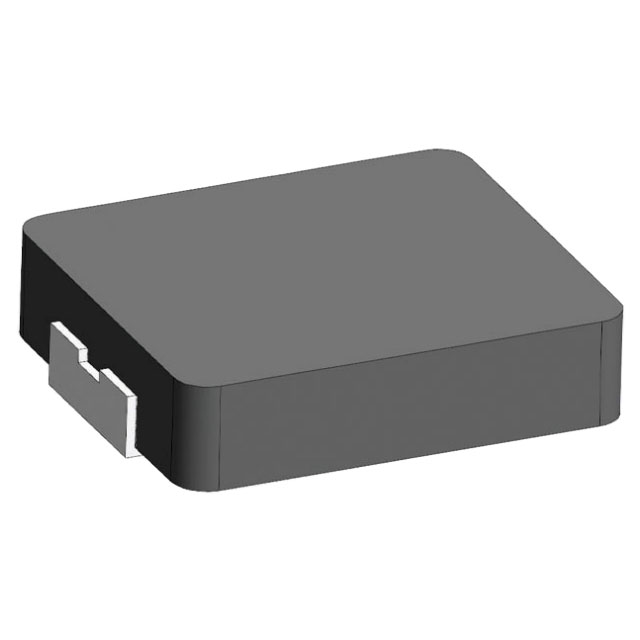

AMPLA4012S-1R0MT
ActiveAbracon LLC
FIXED IND 1UH 4A 47 MOHM SMD
AMPLA4012S-1R0MT
ActiveAbracon LLC
FIXED IND 1UH 4A 47 MOHM SMD
Description
General part information
AMPLA4012S-1R0MT
1 µH Shielded Molded Inductor 4 A 47mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | AMPLA4012S-1R0MT |
|---|---|
| Current - Saturation (Isat) | 6 A |
| Current Rating | 4 A |
| DC Resistance (DCR) (Max) | 47 mOhm |
| Height - Seated (Max) | 0.047 in |
| Inductance | 1 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Carbonyl Powder |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.175 in |
| Size / Dimension Width | 0.16 in |
| Tolerance | 20 % |
| Type | Molded |
