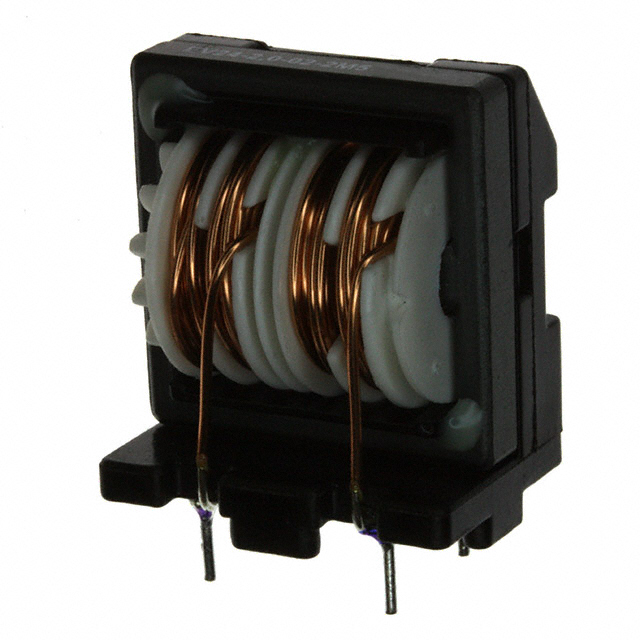

EV24-2.0-02-2M5
ActiveTE Connectivity Raychem Cable Protection
CMC 2.5MH 2A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EV24-2.0-02-2M5
ActiveTE Connectivity Raychem Cable Protection
CMC 2.5MH 2A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EV24-2.0-02-2M5 |
|---|---|
| Current Rating (Max) [Max] | 2 A |
| DC Resistance (DCR) (Max) [Max] | 62 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] | 30.1 mm |
| Height (Max) [Max] | 1.185 in |
| Inductance @ Frequency | 2.5 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 24.6 mm |
| Size / Dimension [x] | 0.969 " |
| Size / Dimension [y] | 0.685 in |
| Size / Dimension [y] | 17.4 mm |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.89 | |
| 10 | $ 2.38 | |||
| 25 | $ 2.20 | |||
| 50 | $ 2.07 | |||
| 100 | $ 1.95 | |||
| 250 | $ 1.81 | |||
| 500 | $ 1.71 | |||
| 1000 | $ 1.61 | |||
| 2500 | $ 1.52 | |||
Description
General part information
EV24-2 Series
2.5 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 2A DCR 62mOhm (Typ)
