YO0221500000G

Active

AMPHENOL ANYTEK

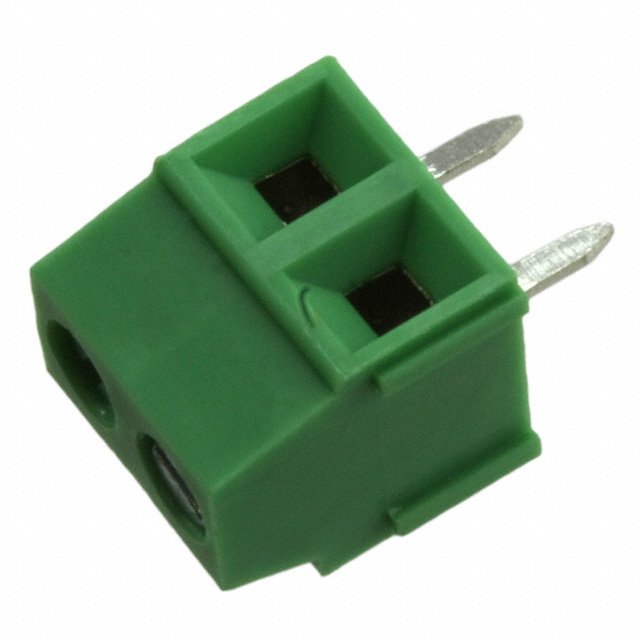

TERM BLK 2P SIDE ENT 3.81MM PCB

Search across all available documentation for this part.

Active

AMPHENOL ANYTEK

TERM BLK 2P SIDE ENT 3.81MM PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YO0221500000G	YO02 Series

Clamp Material - Plating	Copper Alloy - Nickel Plated	Brass - Nickel Plated, Copper Alloy - Nickel Plated
Color	Green	Blue, Green, Black
Contact Material - Plating	Copper Alloy - Tin Plated	Copper Alloy - Tin Plated
Current	10 A	10 A
Features	Interlocking (Side)	Interlocking (Side)
Housing Material	Thermoplastic	Thermoplastic
Mating Orientation	Horizontal with Board	Horizontal with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.15 in	0.15 in
Pitch [x]	3.81 mm	3.81 mm
Positions Per Level	2	2
Screw Material - Plating	Steel, Zinc Plated	Steel, Zinc Plated
Screw Thread	M2	M2
Torque - Screw	0.2 Nm	0.2 Nm
Torque - Screw	1.7 Lb-In	1.7 Lb-In
Voltage	300 V	300 V
Wire Gauge [Max]	24 AWG	24 AWG
Wire Gauge [Min]	16 AWG	16 AWG
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp

TERM BLK 2P SIDE ENT 3.81MM PCB

Part	Color	Torque - Screw	Torque - Screw	Number of Levels	Mating Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Screw Thread	Housing Material	Features	Clamp Material - Plating	Screw Material - Plating	Wire Termination	Positions Per Level	Pitch [x]	Pitch [x]	Voltage	Mounting Type	Current	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material - Plating
AMPHENOL ANYTEK YO0221600000G	Blue	0.2 Nm	1.7 Lb-In	1	Horizontal with Board	-40 °C	115 °C	M2	Thermoplastic	Interlocking (Side)	Brass - Nickel Plated	Steel, Zinc Plated	Screw - Rising Cage Clamp	2	0.15 in	3.81 mm	300 V	Through Hole	10 A	16 AWG	24 AWG
AMPHENOL ANYTEK YO0221500000G	Green	0.2 Nm	1.7 Lb-In	1	Horizontal with Board	-40 °C	115 °C	M2	Thermoplastic	Interlocking (Side)	Copper Alloy - Nickel Plated	Steel, Zinc Plated	Screw - Rising Cage Clamp	2	0.15 in	3.81 mm	300 V	Through Hole	10 A	16 AWG	24 AWG	Copper Alloy - Tin Plated
AMPHENOL ANYTEK YO0221000000G	Black	0.2 Nm	1.7 Lb-In	1	Horizontal with Board	-40 °C	115 °C	M2	Thermoplastic	Interlocking (Side)	Brass - Nickel Plated	Steel, Zinc Plated	Screw - Rising Cage Clamp	2	0.15 in	3.81 mm	300 V	Through Hole	10 A	16 AWG	24 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Wire to Board Terminal Block Horizontal with Board 0.150" (3.81mm) Through Hole
