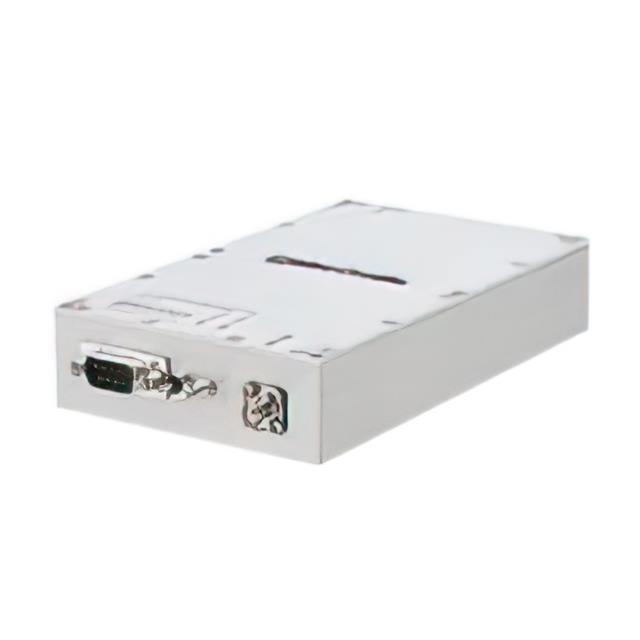

ZHL-16W-43-S+
ActiveMini-Circuits
HIGH POWER AMP, 1.8 TO 4 GHZ
ZHL-16W-43-S+
ActiveMini-Circuits
HIGH POWER AMP, 1.8 TO 4 GHZ
Description
General part information
ZHL-16W-43-S+
RF Amplifier IC GSM, ISM, PCS, WiMAX 1.8GHz ~ 4GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | ZHL-16W-43-S+ |
|---|---|
| Frequency (Max) | 4 GHz |
| Frequency (Min) | 1.8 GHz |
| Gain | 50 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 6 dB |
| P1dB | 41 dBm |
| Package / Case | Module |
| RF Type | ISM, PCS, WiMAX, GSM |
| Test Frequency (Maximum) | 4 GHz |
| Test Frequency (Minimum) | 1.8 GHz |
| Voltage - Supply | 30 VDC |
