Description
General part information

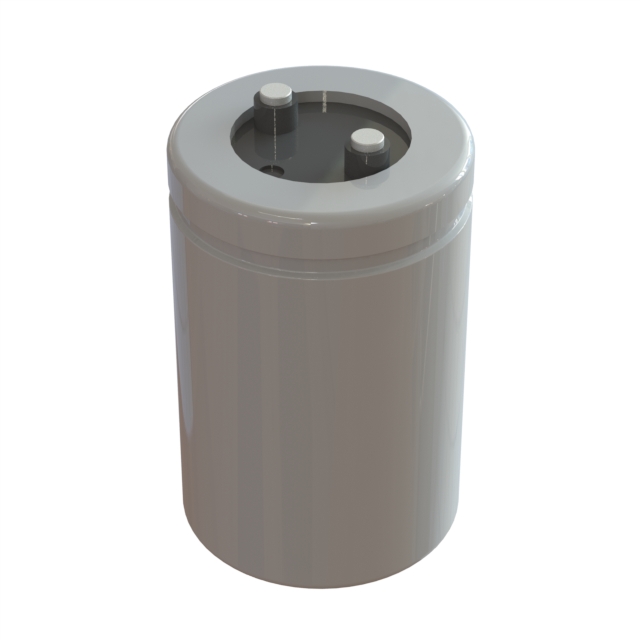

E32D161HLN223MEB7Q
22000 µF 160 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 11.3mOhm @ 120Hz 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | E32D161HLN223MEB7Q |
|---|---|
| Applications | General Purpose |
| Capacitance | 22000 µF |
| ESR (Equivalent Series Resistance) | 11.3 mOhm |
| Height - Seated (Max) | 4.625 in |
| Lead Spacing | 1.25 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 24.09 A, 32.0397 A |
| Size / Dimension Diameter | 3 in |
| Tolerance | 20 % |
| Voltage - Rated | 160 V |
