30-W-50-030

Active

Jonard Tools

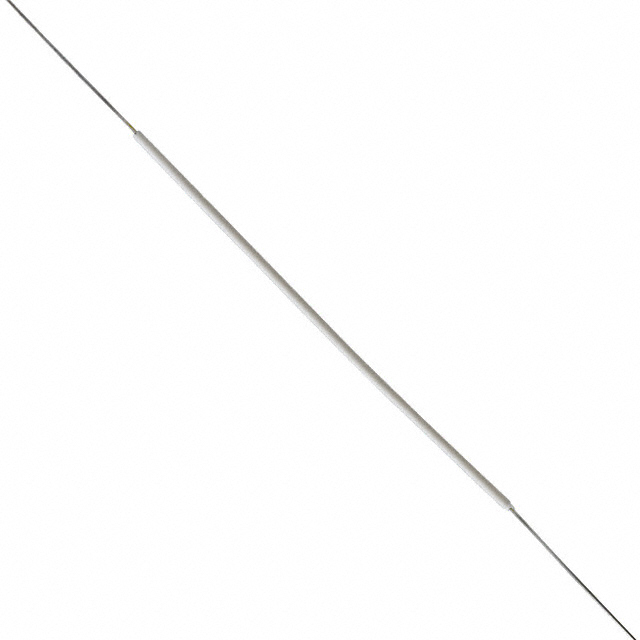

WIRE WW 30AWG PVDF WHITE 5" 50PC

Search across all available documentation for this part.

Active

Jonard Tools

WIRE WW 30AWG PVDF WHITE 5" 50PC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	30-W-50-030	30-W-50 Series

Conductor Diameter [diameter]	0.25 mm	0.25 mm
Conductor Diameter [diameter]	0.01 in	0.01 in
Conductor Material	Copper, Bare	Copper, Bare
Conductor Plating	Silver	Silver
Jacket (Insulation) Diameter [diameter]	0.019 in	0.019 in
Jacket (Insulation) Diameter [diameter]	0.5 mm	0.5 mm
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF)	Polyvinylidene Fluoride (PVDF)
Length	-	7 in
Length	-	177.7 mm
Length	-	0.583 ft
Length [x]	5 "	4 - 5 "
Length [x]	127 mm	101.6 - 127 mm
Length [x]	0.417 '	0.333 - 0.417 '
Ratings	VW-1, UL Style 1423	VW-1, UL Style 1423
Wire Gauge	30 AWG	30 AWG

WIRE WW 30AWG PVDF WHITE 5" 50PC

Part	Wire Gauge	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Diameter [diameter]	Conductor Diameter [diameter]	Conductor Plating	Jacket (Insulation) Material	Length [x]	Length [x]	Length [x]	Ratings	Length	Length	Length
Jonard Tools 30-W-50-030	30 AWG	Copper, Bare	0.019 in	0.5 mm	0.25 mm	0.01 in	Silver	Polyvinylidene Fluoride (PVDF)	5 "	127 mm	0.417 '	UL Style 1423, VW-1
Jonard Tools 30-W-50-050	30 AWG	Copper, Bare	0.019 in	0.5 mm	0.25 mm	0.01 in	Silver	Polyvinylidene Fluoride (PVDF)				UL Style 1423, VW-1	7 in	177.7 mm	0.583 ft
Jonard Tools 30-W-50-020	30 AWG	Copper, Bare	0.019 in	0.5 mm	0.25 mm	0.01 in	Silver	Polyvinylidene Fluoride (PVDF)	4 "	101.6 mm	0.333 ft	UL Style 1423, VW-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Wire Wrap 30 AWG White Polyvinylidene Fluoride (PVDF) 0.417' (127.00mm, 5.00")
