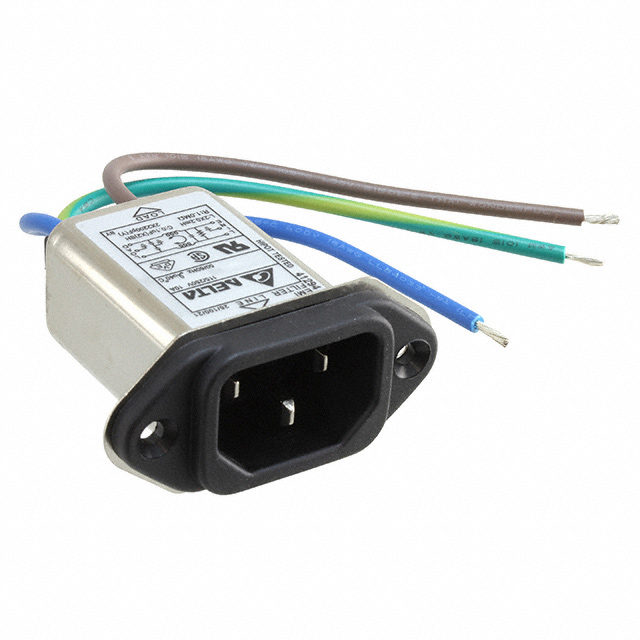

10GEEW3E-R
ActiveDelta Electronics
PWR ENT RCPT IEC320-C14 PNL WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10GEEW3E-R
ActiveDelta Electronics
PWR ENT RCPT IEC320-C14 PNL WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 10GEEW3E-R |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | UL, VDE, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 10 A |
| Current Rating - Filter | 10 A |
| Features | Bleed Resistor |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 28.45 mm |
| Panel Cutout Dimensions [y] | 21.6 mm |
| Termination | Wire Leads |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 115 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
10GEEW3E-R
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
Documents
Technical documentation and resources
