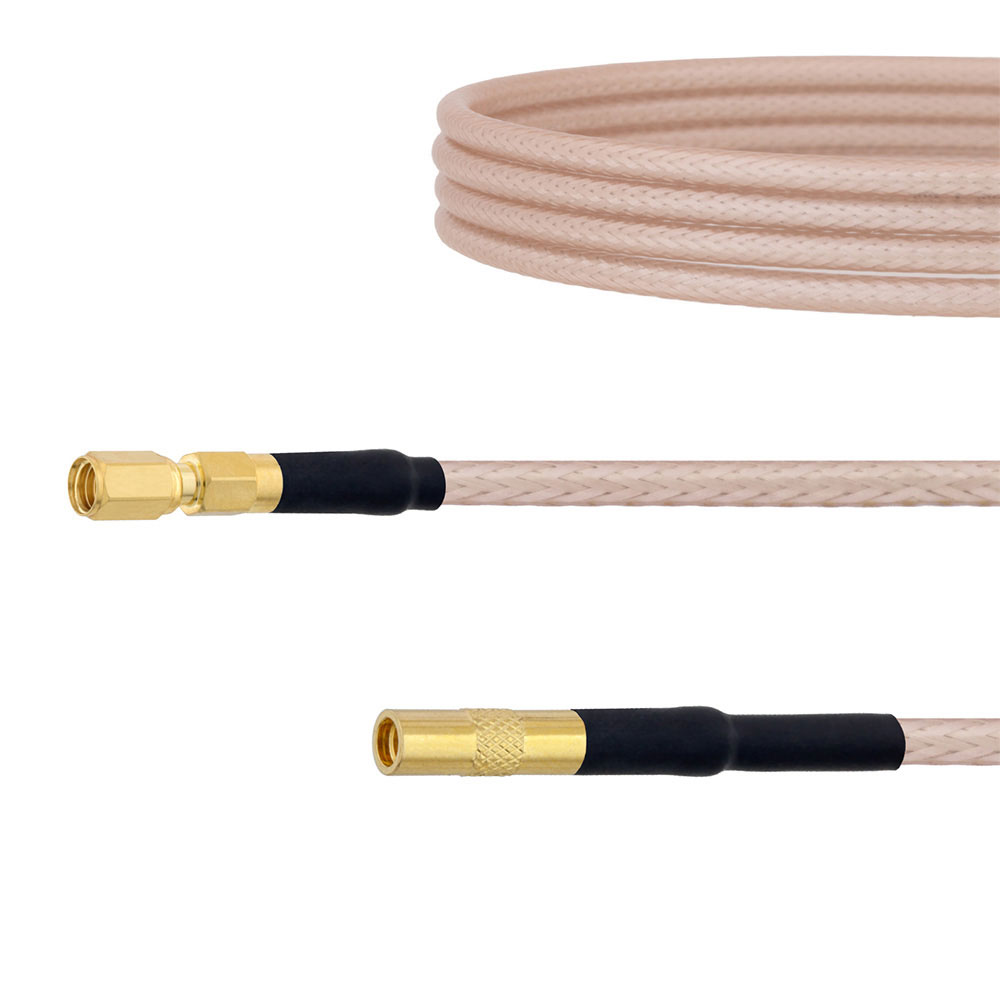

FMC00271-12
ActiveFairview Microwave
CBL ASSY SSMCPLUG-MMCXJACK 12
FMC00271-12
ActiveFairview Microwave
CBL ASSY SSMCPLUG-MMCXJACK 12
Description
General part information
FMC00271-12
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC00271-12 |
|---|---|
| 1st Connector | SSMC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | MMCX Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 316 |
| Color | Tan |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 3 GHz |
| Length | 12 in |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SSMC, MMCX |
