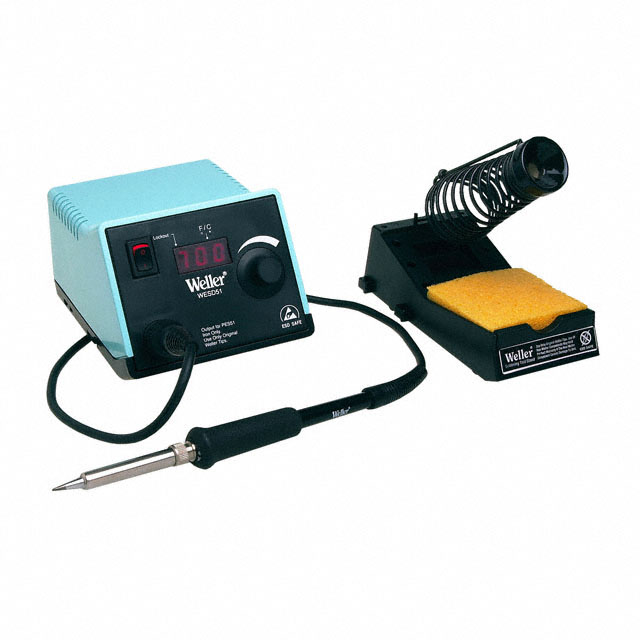

WESD51
ObsoleteApex Tool Group
SOLDERING STATION 50W 1 CH 120V
WESD51
ObsoleteApex Tool Group
SOLDERING STATION 50W 1 CH 120V
Description
General part information
WESD51
SOLDERING STATION 50W 1 CH 120V
Technical Specifications
Parameters and characteristics for this part
| Specification | WESD51 |
|---|---|
| Base Unit | WES51PU |
| Control/Display Type | Digital |
| Features | ESD Safe, Temperature Control |
| Includes | Iron Holder, Probe |
| Number of Channels | 1 |
| Plug Type | NEMA 5-15 |
| Supplied Iron, Tweezer, Handle | PES51 |
| Supplied Tips/Nozzles | ETA |
| Temperature Range (Max) | 850 °F |
| Temperature Range (Min) | 350 °F |
| Tip Cleaner | Sponge |
| Type | Soldering |
| Voltage - Input | 120 VAC |
| Voltage - Output | 24 V |
| Wattage | 50 W |
| Workstand | PH50 |
