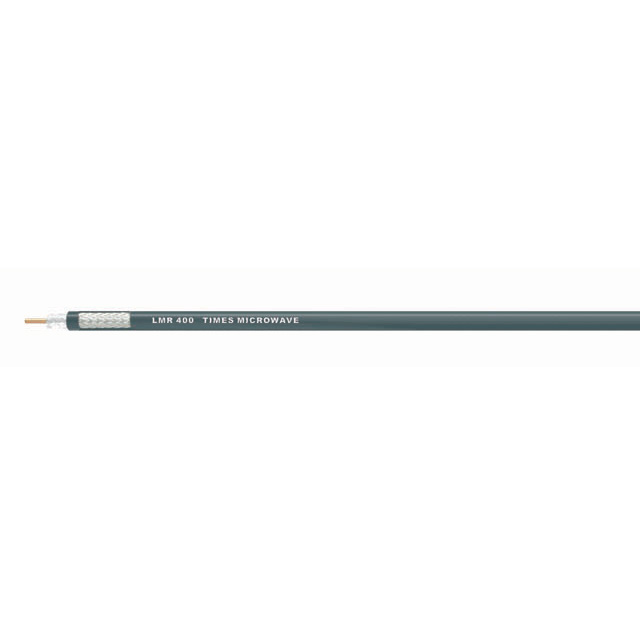

CABLE LMR-400 BLACK PE 10'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LMR-400-DB
ActiveAmphenol Times Microwave Systems
CABLE LMR-400 BLACK PE 10'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LMR-400-DB | LMR-400 Series |
|---|---|---|
| Cable Type | Coaxial | Coaxial, Coaxial - Plenum, Coaxial - Riser |
| Conductor Material | Aluminum, Copper Coated | Aluminum, Copper Coated, Copper, Bare |
| Conductor Strand | Solid | Solid |
| Dielectric Diameter [diameter] | 7.24 mm | 7.24 mm |
| Dielectric Diameter [diameter] | 0.285 in | 0.285 in |
| Dielectric Material | Foam Polyethylene (FPE) | Foam Polyethylene (FPE), Polytetrafluoroethylene (PTFE) |
| Features | Direct Burial, Watertight | Fire Retardant, Direct Burial, Watertight, Flame Retardant |
| Impedance | 50 Ohms | 50 - 75 Ohms |
| Jacket (Insulation) Diameter [diameter] | 10.29 mm | 9.4 - 10.29 mm |
| Jacket (Insulation) Diameter [diameter] | 0.405 in | 0.37 - 0.405 in |
| Jacket (Insulation) Material | Polyethylene (PE) | Poly-Vinyl Chloride (PVC), Polyethylene (PE), Riser, Polyethylene (PE), Low Smoke Zero Halogen (LSZH), Thermoplastic Elastomer (TPE), Plenum, Poly-Vinyl Chloride (PVC), Riser, Fluoropolymer, Plenum |
| Jacket Color | Black | Black, Orange, Red |
| Length | 15.24 m | 15.24 - 152.4 m |
| Length | 50 ft | 50 - 6000 " |
| Length | - | Enter Number of Feet in Order Quantity |
| Length [x] | 100 ft, 10 ft | 10 - 100 ft |
| Length [x] | 30.48 m, 3.05 m | 3.05 - 30.48 m |
| Operating Temperature [Max] | 85 °C | 75 - 125 °C |
| Operating Temperature [Min] | -40 °C | -40 - -5 °C |
| Shield Material | Copper, Tinned, Aluminum | Copper, Tinned, Aluminum |
| Shield Type | Braid | Braid, Foil |
| Spool Size | - | 500 ' |
| Spool Size | - | 152.4 m |
| VoP, Velocity of Propagation | 84 | 76 - 85 |
LMR-400 Series
INDOOR CABLE, BLACK PVC JACKET
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Shield Material | Jacket Color | Cable Type | Impedance | Dielectric Material | Shield Type | Conductor Material | VoP, Velocity of Propagation | Conductor Strand | Jacket (Insulation) Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Spool Size | Spool Size | Features | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Times Microwave Systems LMR-400-PVC | 85 °C | -40 °C | Aluminum, Copper, Tinned | Black | Coaxial | 50 Ohms | Foam Polyethylene (FPE) | Braid | Aluminum, Copper Coated | 84 | Solid | Poly-Vinyl Chloride (PVC) | 7.24 mm | 0.285 in | 10.29 mm | 0.405 in | ||||||||
Amphenol Times Microwave Systems LMR-400-UF-FR | 85 °C | -40 °C | Aluminum, Copper, Tinned | Black | Coaxial | 50 Ohms | Foam Polyethylene (FPE) | Braid | Copper, Bare | 83 | Polyethylene (PE), Riser | 7.24 mm | 0.285 in | 10.29 mm | 0.405 in | Enter Number of Feet in Order Quantity | 500 ' | 152.4 m | Fire Retardant | |||||
Amphenol Times Microwave Systems LMR-400-LSZH | 85 °C | -40 °C | Aluminum, Copper, Tinned | Black | Coaxial | 50 Ohms | Foam Polyethylene (FPE) | Braid | Copper, Bare | 85 | Solid | Low Smoke Zero Halogen (LSZH), Polyethylene (PE) | 7.24 mm | 0.285 in | 10.29 mm | 0.405 in | ||||||||
Amphenol Times Microwave Systems LMR-400-75 | 85 °C | -40 °C | Aluminum, Copper, Tinned | Black | Coaxial | 75 Ohms | Foam Polyethylene (FPE) | Braid | Copper, Bare | 85 | Solid | Polyethylene (PE) | 7.24 mm | 0.285 in | 10.29 mm | 0.405 in | Enter Number of Feet in Order Quantity | 500 ' | 152.4 m | |||||
Amphenol Times Microwave Systems LMR-400-UF-DB | 85 °C | -40 °C | Aluminum, Copper, Tinned | Black | Coaxial | 50 Ohms | Foam Polyethylene (FPE) | Braid | Copper, Bare | 83 | Thermoplastic Elastomer (TPE) | 7.24 mm | 0.285 in | 10.29 mm | 0.405 in | Direct Burial, Watertight | ||||||||
Amphenol Times Microwave Systems LMR-400-75-LSZH | 85 °C | -40 °C | Aluminum, Copper, Tinned | Black | Coaxial | 75 Ohms | Foam Polyethylene (FPE) | Braid | Copper, Bare | 85 | Solid | Low Smoke Zero Halogen (LSZH), Polyethylene (PE) | 7.24 mm | 0.285 in | 10.29 mm | 0.405 in | ||||||||
Amphenol Times Microwave Systems LMR-400-75-FR | 85 °C | -40 °C | Aluminum, Copper, Tinned | Black | Coaxial | 75 Ohms | Foam Polyethylene (FPE) | Braid | Copper, Bare | 85 | Solid | Polyethylene (PE) | 7.24 mm | 0.285 in | 10.29 mm | 0.405 in | Fire Retardant | |||||||
Amphenol Times Microwave Systems LMR-400-PVC-W | 85 °C | -40 °C | Aluminum, Copper, Tinned | Coaxial | 50 Ohms | Foam Polyethylene (FPE) | Braid | Aluminum, Copper Coated | 84 | Solid | Poly-Vinyl Chloride (PVC) | 7.24 mm | 0.285 in | 10.29 mm | 0.405 in | |||||||||
Amphenol Times Microwave Systems LMR-400 | 85 °C | -40 °C | Aluminum, Copper, Tinned | Black | Coaxial | 50 Ohms | Foam Polyethylene (FPE) | Braid | Aluminum, Copper Coated | 84 | Solid | Polyethylene (PE) | 7.24 mm | 0.285 in | 10.29 mm | 0.405 in | 10 ft, 100 ft | 3.05 m, 30.48 m | 15.24 m, 76.2 m | 50 ft, 3000 " | ||||
Amphenol Times Microwave Systems LMR-400-DB | 85 °C | -40 °C | Aluminum, Copper, Tinned | Black | Coaxial | 50 Ohms | Foam Polyethylene (FPE) | Braid | Aluminum, Copper Coated | 84 | Solid | Polyethylene (PE) | 7.24 mm | 0.285 in | 10.29 mm | 0.405 in | Direct Burial, Watertight | 10 ft, 100 ft | 3.05 m, 30.48 m | 15.24 m | 50 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 77.24 | |
| 1 | $ 15.55 | |||
| 3 | $ 71.46 | |||
| 3 | $ 14.34 | |||
| 5 | $ 13.81 | |||
| 7 | $ 13.51 | |||
Description
General part information
LMR-400 Series
Coaxial Cable 10.0' (3.05m) 50 Ohms
