KP01.1052.06

Active

SCHURTER Inc.

PWR ENT IN/OUT IEC320-2-2F PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT IN/OUT IEC320-2-2F PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	KP01.1052.06	KP01.1052 Series

Accomodates a Fuse	False	False
Approval Agency	VDE, CCC, cURus	VDE, CCC, cURus
Connector Style	IEC 320-2-2/F, IEC 320-C14	IEC 320-2-2/F, IEC 320-C14
Connector Type	Receptacle, Female Sockets, Receptacle, Male Blades	Receptacle, Female Sockets, Receptacle, Male Blades
Current Rating - Appliance Inlet	10 A	10 A
Features	Terminating Cover	Terminating Cover
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle	Panel Mount, Flange, Through Hole, Right Angle
Number of Positions	2	2
Number of Positions	3	3
Panel Cutout Dimensions	Variable Size	Variable Size
Panel Thickness	-	2 mm
Panel Thickness	-	0.079 in
Termination	Solder	Solder
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

PWR ENT IN/OUT IEC320-2-2F PNL

Part	Connector Type	Approval Agency	Mounting Type	Accomodates a Fuse	Connector Style	Features	Panel Cutout Dimensions	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Panel Thickness	Panel Thickness	Material Flammability Rating	Termination	Number of Positions	Number of Positions	Filter Type	Ingress Protection
SCHURTER Inc. KP01.1052.01	Receptacle, Female Sockets, Receptacle, Male Blades	CCC, cURus, VDE	Panel Mount, Flange, Through Hole, Right Angle		IEC 320-2-2/F, IEC 320-C14	Terminating Cover	Variable Size	10 A	250 VAC	2 mm	0.079 in	UL94 V-0	Solder	2	3	Unfiltered - Commercial	IP40
SCHURTER Inc. KP01.1052.06	Receptacle, Female Sockets, Receptacle, Male Blades	CCC, cURus, VDE	Panel Mount, Flange, Through Hole, Right Angle		IEC 320-2-2/F, IEC 320-C14	Terminating Cover	Variable Size	10 A	250 VAC			UL94 V-0	Solder	2	3	Unfiltered - Commercial	IP40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

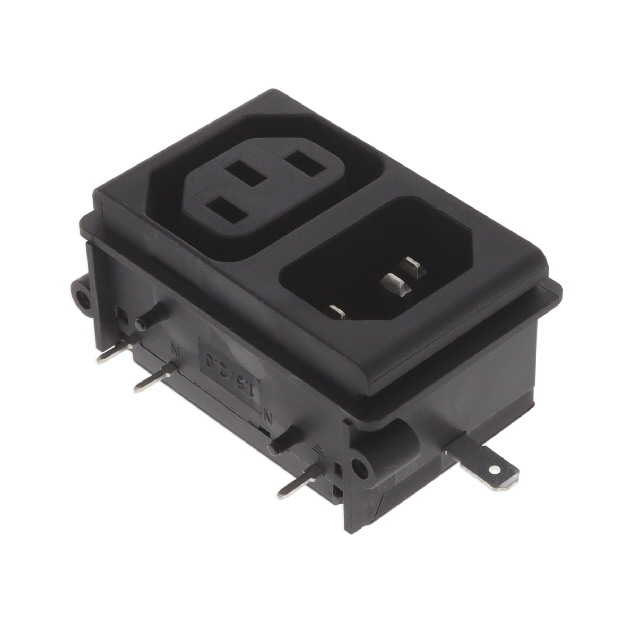

Power Entry Connector Receptacle, Female Sockets; Receptacle, Male Blades IEC 320-2-2/F; IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
