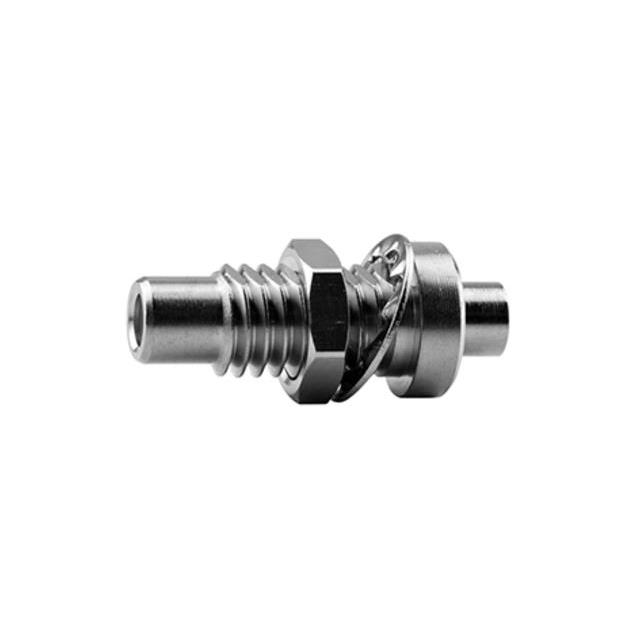

Specification	100024902

Body Finish	Tri-Metal
Body Material	Brass
Cable Group	Belden 1671A, RG-405
Cable Group Diameter (Semi Rigid)	0.085 in
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	10 GHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	100 cycles
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Ports	1
Shield Termination	Solder
