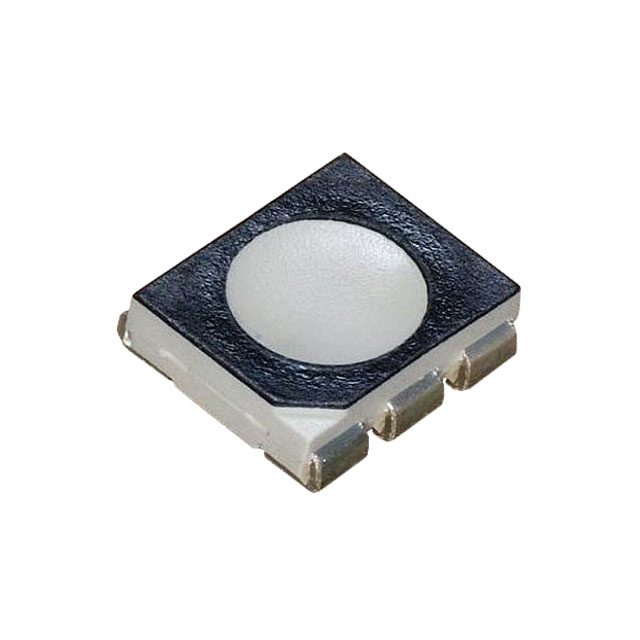

CLP6C-FKB-CK1P1G1BB7R3R3

Active

Cree LED

LED, RGB, RED, GREEN, BLUE, SMD, 120 °, ROUND, R 20MA, G 20MA, B 20MA

Search across all available documentation for this part.

Active

Cree LED

LED, RGB, RED, GREEN, BLUE, SMD, 120 °, ROUND, R 20MA, G 20MA, B 20MA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Green, Blue (RGB) 621.5nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.2V Green, 3.2V Blue 6-SMD, J-Lead

Technical documentation and resources

Specification	CLP6C-FKB-CK1P1G1BB7R3R3	CLP6C Series

Color	Red, Green, Blue	Red, Amber, Green, Blue
Configuration	Independent	Standard, Independent
Current - Test	-	50 mA
Current - Test [custom]	20 mA	20 mA
Current - Test [custom]	20 mA	20 mA
Current - Test [custom]	20 mA	20 mA
Height (Max) [Max] [z]	2.6 mm	2.6 mm
Lens Color	White	Colorless, White
Lens Size [diameter]	4 mm	4 mm
Lens Transparency	Diffused	Clear, Diffused
Millicandela Rating	-	5325 - 6750 mcd
Millicandela Rating [custom]	420 mcd	420 mcd
Millicandela Rating [custom]	840 mcd	840 mcd
Millicandela Rating [custom]	1680 mcd	1680 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	6-SMD, J-Lead	6-SMD, J-Lead
Size / Dimension [x]	6 mm	6 mm
Size / Dimension [y]	5 mm	5 mm
Supplier Device Package	6-PLCC	6-PLCC
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	-	2.4 V
Voltage - Forward (Vf) (Typ) [custom]	3.2 V	3.2 V
Voltage - Forward (Vf) (Typ) [custom]	2 V	2 V
Voltage - Forward (Vf) (Typ) [custom]	3.2 V	3.2 V
Wavelength - Dominant	530 nm, 621.5 nm, 470 nm	470 - 624 nm

Part	Lens Transparency	Millicandela Rating	Supplier Device Package	Current - Test	Lens Size [diameter]	Voltage - Forward (Vf) (Typ)	Package / Case	Height (Max) [Max] [z]	Wavelength - Dominant	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Lens Color	Color	Configuration	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Viewing Angle	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]
Cree LED CLP6C-RKW-CYBA0AA3	Clear	5325 mcd	6-PLCC	50 mA	4 mm	2.4 V	6-SMD, J-Lead	2.6 mm	624 nm	6 mm	5 mm	Surface Mount	Colorless	Red	Standard
Cree LED CLP6C-AKW-CZ0B0AA3	Clear	6750 mcd	6-PLCC	50 mA	4 mm	2.4 V	6-SMD, J-Lead	2.6 mm	591 nm	6 mm	5 mm	Surface Mount	Colorless	Amber	Standard
Cree LED CLP6C-FKB-CK1P1G1BB7R3R3	Diffused		6-PLCC		4 mm		6-SMD, J-Lead	2.6 mm	470 nm, 530 nm, 621.5 nm	6 mm	5 mm	Surface Mount	White	Blue, Green, Red	Independent	420 mcd	840 mcd	1680 mcd	20 mA	20 mA	20 mA	120 °	3.2 V	2 V	3.2 V
