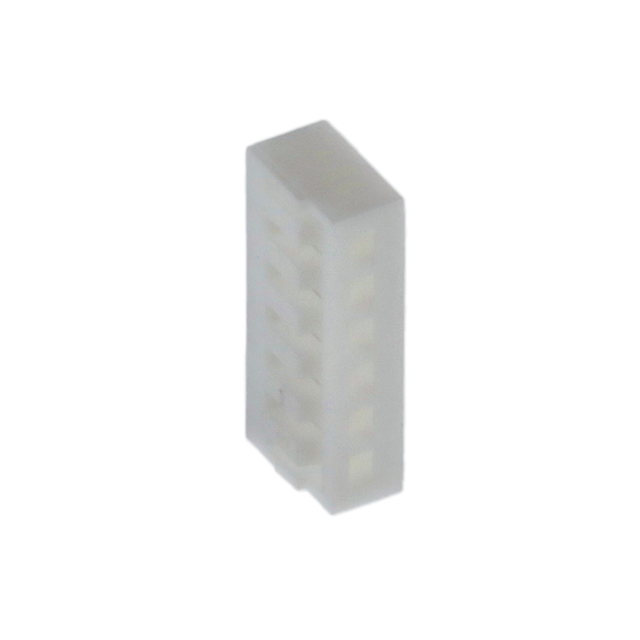

10156614-0600LF
ActiveAmphenol ICC (FCI)
CONN BOARD-IN HSG 6POS 2.00MM
Deep-Dive with AI
Search across all available documentation for this part.
10156614-0600LF
ActiveAmphenol ICC (FCI)
CONN BOARD-IN HSG 6POS 2.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10156614-0600LF |
|---|---|
| Color | Natural |
| Connector Type | Board-In |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Through Hole |
| Note | Contacts Not Included |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.17 | |
| 10 | $ 0.13 | |||
| 25 | $ 0.11 | |||
| 50 | $ 0.10 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.08 | |||
| 2500 | $ 0.07 | |||
Description
General part information
10156614 Series
6 Rectangular Connectors - Housings Board-In Natural 0.079" (2.00mm)
