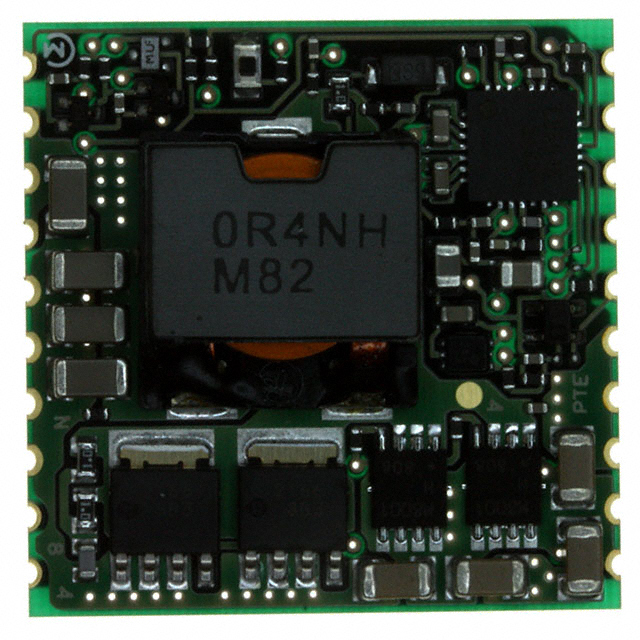

MPDRX303S
ActiveMurata Power Solutions Inc.
MODULE DC-DC 9.6VIN 1-OUT 1.6V TO 3.63V 26A 94.4W 20-PIN SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPDRX303S
ActiveMurata Power Solutions Inc.
MODULE DC-DC 9.6VIN 1-OUT 1.6V TO 3.63V 26A 94.4W 20-PIN SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MPDRX303S | MPDRX Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active High, Enable | Active High, Enable |
| Current - Output (Max) [Max] | 26 A | 13 - 26 A |
| Efficiency | 91 % | 90 - 91 % |
| Features | UVLO, Remote On/Off, SCP, OCP | UVLO, Remote On/Off, SCP, OCP |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 20-SMD Module | 20-SMD Module, 16-SMD Module |
| Power (Watts) | 95 W | 48 - 95 W |
| Size / Dimension [x] | 1.06 " | 0.86 - 1.06 " |
| Size / Dimension [x] | 26.8 mm | 21.9 - 26.8 mm |
| Size / Dimension [y] | 1.06 in | 0.85 - 1.06 in |
| Size / Dimension [y] | 26.8 mm | 21.7 - 26.8 mm |
| Size / Dimension [z] | 0.28 " | 0.17 - 0.28 " |
| Size / Dimension [z] | 7 mm | 4.2 - 7 mm |
| Type | Non-Isolated PoL Module | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14 V | 14 V |
| Voltage - Input (Min) [Min] | 5.6 V | 5.6 V |
| Voltage - Output 1 [Max] | 3.63 V | 3.63 V |
| Voltage - Output 1 [Min] | 1.6 V | 1.6 V |
MPDRX Series
MODULE DC-DC 9.6VIN 1-OUT 1.6V TO 3.63V 26A 94.4W 20-PIN SMD
| Part | Features | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Power (Watts) | Voltage - Input (Min) [Min] | Package / Case | Control Features | Efficiency | Type | Number of Outputs | Mounting Type | Voltage - Input (Max) [Max] | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. MPDRX303S | OCP, Remote On/Off, SCP, UVLO | 85 °C | -40 °C | 26 A | 95 W | 5.6 V | 20-SMD Module | Active High, Enable | 91 % | Non-Isolated PoL Module | 1 | Surface Mount | 14 V | 3.63 V | 1.6 V | 0.28 " | 1.06 in | 1.06 " | 7 mm | 26.8 mm | 26.8 mm | ITE (Commercial) |
Murata Power Solutions Inc. MPDRX301S | 85 °C | -40 °C | 13 A | 48 W | 5.6 V | 16-SMD Module | 90 % | Non-Isolated PoL Module | 1 | Surface Mount | 14 V | 3.63 V | 1.6 V | 0.17 in | 0.85 " | 0.86 in | 4.2 mm | 21.9 mm | 21.7 mm | ITE (Commercial) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MPDRX Series
Non-Isolated PoL Module DC DC Converter 1 Output 1.6 ~ 3.63V 26A 5.6V - 14V Input
