430111-09-0
ActiveCurtis Industries

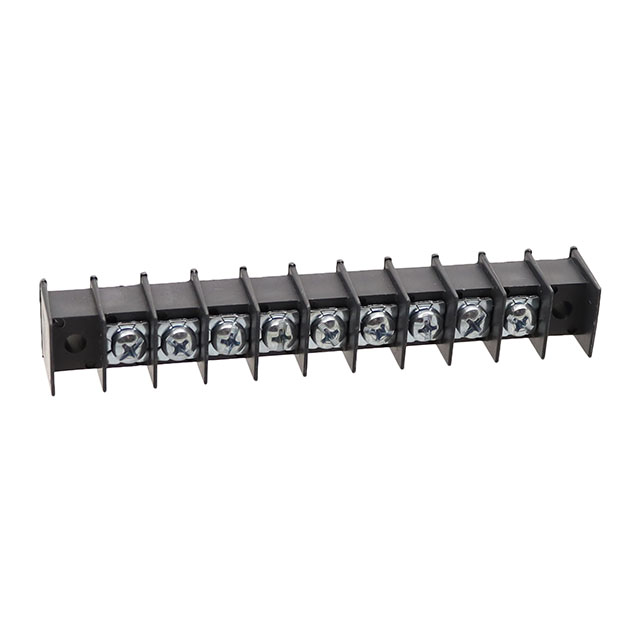

CONN BARRIER STRIP 9CIRC 0.438"
Deep-Dive with AI
Search across all available documentation for this part.
430111-09-0
ActiveCurtis Industries
CONN BARRIER STRIP 9CIRC 0.438"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 430111-09-0 | 430111 Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | PC Pin | PC Pin |
| Current Rating (Amps) | 20 A | 20 A |
| Features | Flange | Flange |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Chassis, Panel, Through Hole | Chassis, Panel, Through Hole |
| Number of Circuits | - | 1 - 23 |
| Number of Circuits | - | 8 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 9 | 6 - 18 |
| Number of Wire Entries | - | 1 - 23 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 11.12 mm | 11.12 mm |
| Pitch [x] | 0.438 in | 0.438 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Top Termination | Screws | Screws |
| Voltage Rating | 600 V | 600 V |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.98 | |
| 10 | $ 6.29 | |||
| 25 | $ 5.99 | |||
| 50 | $ 5.43 | |||
| 100 | $ 5.22 | |||
| 250 | $ 4.61 | |||
| 500 | $ 4.30 | |||
| 1000 | $ 3.99 | |||
430111 Series
CONN BARRIER STRIP 9CIRC 0.438"
| Part | Number of Rows | Current Rating (Amps) | Operating Temperature | Terminal Block Type | Voltage Rating | Mounting Type | Features | Pitch [x] | Pitch [x] | Number of Wire Entries | Top Termination | Bottom Termination | Material - Insulation | Wire Gauge [Min] | Wire Gauge [Max] | Barrier Type | Material Flammability Rating | Number of Circuits | Number of Wire Entries [custom] | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 430111-09-0 | 1 | 20 A | 105 C | Barrier Block | 600 V | Chassis, Panel, Through Hole | Flange | 11.12 mm | 0.438 in | 9 | Screws | PC Pin | Polypropylene (PP) | 12 AWG | 22 AWG | 2 Wall (Dual) | UL94 V-0 | |||
Curtis Industries 430111-12-0 | 1 | 20 A | 105 C | Barrier Block | 600 V | Chassis, Panel, Through Hole | Flange | 11.12 mm | 0.438 in | 12 | Screws | PC Pin | Polypropylene (PP) | 12 AWG | 22 AWG | 2 Wall (Dual) | UL94 V-0 | 12 | ||
Curtis Industries 430111-10-0 | 1 | 20 A | 105 C | Barrier Block | 600 V | Chassis, Panel, Through Hole | Flange | 11.12 mm | 0.438 in | 10 | Screws | PC Pin | Polypropylene (PP) | 12 AWG | 22 AWG | 2 Wall (Dual) | UL94 V-0 | 10 | ||
Curtis Industries 430111-18-0 | 1 | 20 A | 105 C | Barrier Block | 600 V | Chassis, Panel, Through Hole | Flange | 11.12 mm | 0.438 in | 18 | Screws | PC Pin | Polypropylene (PP) | 12 AWG | 22 AWG | 2 Wall (Dual) | UL94 V-0 | 18 | ||
Curtis Industries 430111-01-0 | 1 | 20 A | 105 C | Barrier Block | 600 V | Chassis, Panel, Through Hole | Flange | Screws | PC Pin | Polypropylene (PP) | 12 AWG | 22 AWG | 2 Wall (Dual) | UL94 V-0 | 1 | 1 | ||||
Curtis Industries 430111-23-0 | 1 | 20 A | 105 C | Barrier Block | 600 V | Chassis, Panel, Through Hole | Flange | 11.12 mm | 0.438 in | Screws | PC Pin | Polypropylene (PP) | 12 AWG | 22 AWG | 2 Wall (Dual) | UL94 V-0 | 23 | 23 | ||
Curtis Industries 430111-08-0 | 1 | 20 A | 105 C | Barrier Block | 600 V | Chassis, Panel, Through Hole | Flange | 11.12 mm | 0.438 in | 8 | Screws | PC Pin | Polypropylene (PP) | 12 AWG | 22 AWG | 2 Wall (Dual) | UL94 V-0 | 8 | ||
Curtis Industries 430111-06-0 | 1 | 20 A | 105 C | Barrier Block | 600 V | Chassis, Panel, Through Hole | Flange | 11.12 mm | 0.438 in | 6 | Screws | PC Pin | Polypropylene (PP) | 12 AWG | 22 AWG | 2 Wall (Dual) | UL94 V-0 | 6 | ||
Curtis Industries 430111-15-0 | 1 | 20 A | 105 C | Barrier Block | 600 V | Chassis, Panel, Through Hole | Flange | 11.12 mm | 0.438 in | 15 | Screws | PC Pin | Polypropylene (PP) | 12 AWG | 22 AWG | 2 Wall (Dual) | UL94 V-0 | 15 | ||
Curtis Industries 430111-07-0 | 1 | 20 A | 105 C | Barrier Block | 600 V | Chassis, Panel, Through Hole | Flange | 11.12 mm | 0.438 in | 7 | Screws | PC Pin | Polypropylene (PP) | 12 AWG | 22 AWG | 2 Wall (Dual) | UL94 V-0 | 7 |
Description
General part information
430111 Series
9 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
